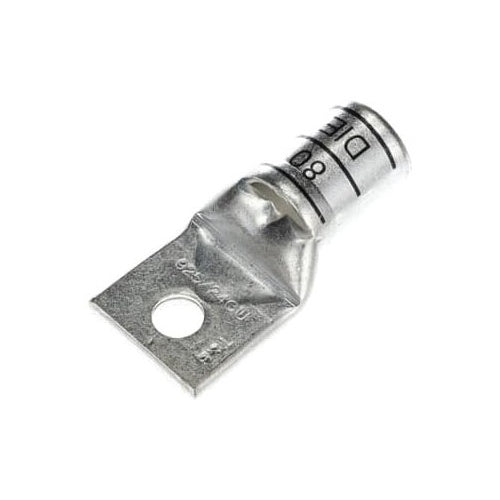

T&B 58177 400 Weld Copper Standard Barrel .1 Hole.5 Inchb

Overview

T&B 58177 400 Weld Copper Standard Barrel .1 Hole.5 Inchb

Product Specifications

• UPC: 78621058177
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Die Index: 80
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 3.31 Inch
• Approval: UL, CSA
• Catalog Number: 58177
• Brand Name: Color-Keyed
• Model: 581
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 400 KCMIL (Weld, Flex), 925/24 (Flex), 373 (Flex), 259/0.0393 (Flex), 427/0.0306 (Flex)
• Barrel Type: Standard, Straight
• Pad Size: 1.25 Inch Length x 1.61 Inch Width x 0.22 Inch Thickness
• Catalog Description: COPPER ONE-HOLE LUG, STANDARD BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE 400 FLEX, 1/2 INCH BOLT SIZE, TIN PLATED, DIE CODE 80, DIE COLOR CODE N/A
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; 3.31 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 400 kcmil (Weld, Flex), 925/24 (Flex), 373 (Flex), 259/0.0393 (Flex), 427/0.0306 (Flex) Conductor Size; 1/2 Inch Stud Size; 80 Die Index; 1.25 Inch Length X 1.61 Inch Width X 0.22 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; 581 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210581774
• SKU Name: t&b 58177
