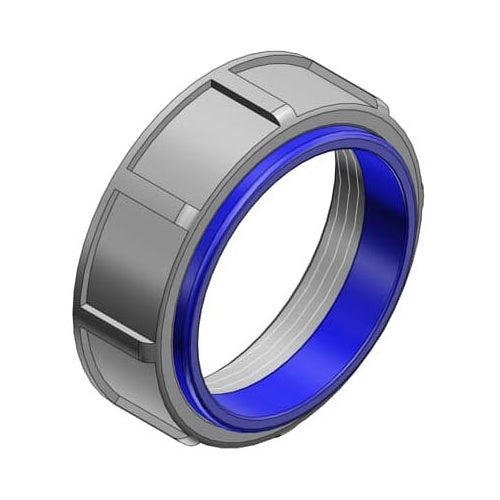

T&B 587 6" Insulated Iron Bushing

Overview

T&B 587 6" Insulated Iron Bushing

Product Specifications

• UPC: 78621000587
• Standard Package: 1
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEC 373-6C
• Catalog Number: 587
• Type: Threaded Female
• Trade Size: 6 Inch
• Diameter: 7-3/16 Inch
• Height: 1-11/32 Inch
• Throat Type: Nylon Insulated
• Temperature Rating: 105 Deg C
• Material: Malleable Iron
• Catalog Description: 6 INCH INSULATED BUSHING, MALLEABLE IRON, BLUE INSULATING LINER IN THROAT FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Female Type; Malleable Iron Material; 1-11/32 Inch; Rigid Conduit/Imc Used on; UL, CSA Approval; 7-3/16 Inch Diameter; 105 Deg C Temperature Rating; 1 Standard Package; 6 Inch Trade Size; Nylon Insulated Throat Type; Applicable Standard NEC 373-6C
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Bushing
• Unspsc: 39121312
• UPC 12 Digit: 786210005874
• SKU Name: t&b 587

Resources

• Manufacturer Spec Sheet
