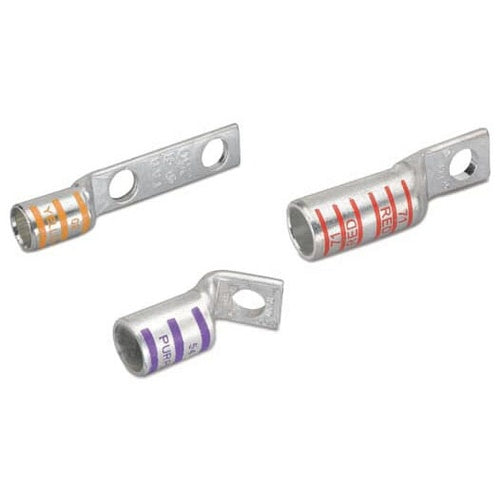

T&B 58825NT Narrow Lug 2- Hole 3/8" On 1

Overview

T&B 58825NT Narrow Lug 2- Hole 3/8" On 1

Product Specifications

• UPC: 78621006740
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1 INCH
• Stud Size: 3/8 INCH
• Color: YELLOW
• Die Index: 115
• Material: ELECTROLYTIC TIN PLATED WROUGHT COPPER
• Overall Length: 5 INCH
• Approval: UL, CSA
• Catalog Number: 58825NT
• Brand Name: Color-Keyed[R]
• Model: 588
• Voltage Rating: 600 V
• Conductor Material: COPPER
• Conductor Size: 900 KCMIL (CODE), 750/777 (FLEX), 1925/24 (FLEX)
• Barrel Type: SHORT
• Pad Size: 2-1/8 INCH L X 1-21/32 INCH W X 5/16 INCH THK
• Catalog Description: COPPER TWO-HOLE LUG, STANDARD BARREL - NARROW TONGUE, PEEP HOLE, MAX 35KV, WIRE SIZE 900 KCMIL, 3/8 INCH BOLT SIZE, 1 INCH HOLE SPACING, TIN PLATED, DIE CODE 115, DIE COLOR CODE YELLOW
• Category: Large Terminals & Connectors
• Full Technical Description: Electrolytic Tin Plated Wrought Copper Material; Yellow Color; 5 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V Voltage Rating; 900 kcmil (Code), 750/777 (Flex), 1925/24 (Flex) Conductor Size; 3/8 Inch Stud Size; 115 Die Index; 2-1/8 Inch L X 1-21/32 Inch W X 5/16 Inch Thk Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Short Barrel Type; COLOR-KEYED[R] Brand; 588 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210067407
• SKU Name: t&b 58825nt

Resources

• Manufacturer Spec Sheet
