Overview

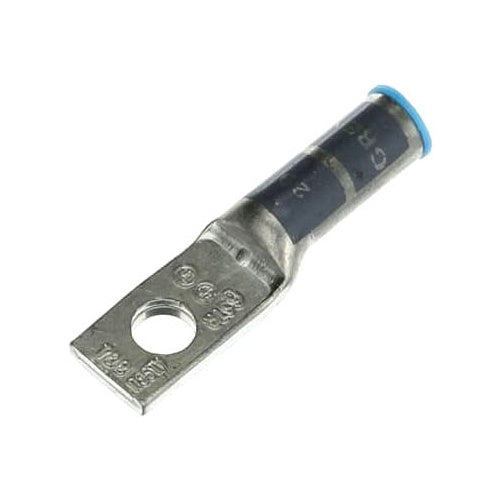

T&B 60107-TB 6Awg Grey 1-Hole Aluminum/Copper Lug

Product Specifications

• UPC: 78621060107
• Stud Size: 1/4 Inch
• Color: Gray
• Die Index: 29
• Material: Electro Tin Plated Wrought Aluminum
• Overall Length: 1.67 Inch
• Approval: UL, CSA
• Additional Information: Includes Top/Bottom Stacking
• Catalog Number: 60107-TB
• Model: 601
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Aluminum/Copper
• Conductor Size: 6 AWG
• Barrel Type: Long, Straight
• Pad Size: 0.75 Inch L x 0.47 Inch W x 0.13 Inch Thk
• Number Of Pad Holes: 1
• Catalog Description: ALUMINUM ONE-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, #6 AWG WIRE, 1/4 INCH BOLT SIZE, TIN PLATED, DIE CODE 29, DIE COLOR CODE GRAY
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Aluminum Material; Gray Color; 1.67 Inch Overall Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 6 AWG Conductor Size; 1/4 Inch Stud Size; 29 Die Index; 0.75 Inch L X 0.47 Inch W X 0.13 Inch Thk Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; Includes Top/Bottom Stacking; 601 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210601076
• SKU Name: t&b 60107tb

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
