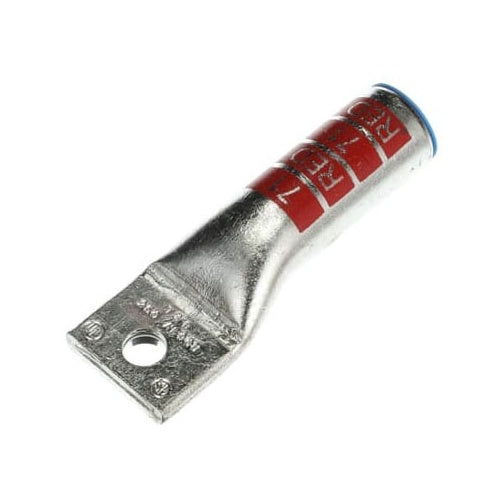

T&B 60154 250Mcm Red 1-Hole Aluminum/Copper Lug

Product Specifications

• UPC: 78621060154
• Stud Size: 3/8 Inch
• Color: Red
• Die Index: 71H
• Material: Electro Tin Plated Wrought Aluminum
• Overall Length: 3.73 Inch
• Approval: UL, CSA
• Catalog Number: 60154
• Model: 601
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Aluminum/Copper
• Conductor Size: 250 KCMIL (Code)
• Barrel Type: Long, Straight
• Pad Size: 0.93 Inch L x 1.29 Inch W x 0.27 Inch Thk
• Number Of Pad Holes: 1
• Catalog Description: ALUMINUM ONE-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, 250 KCMIL WIRE, 3/8 INCH BOLT SIZE, TIN PLATED, DIE CODE 71, DIE COLOR CODE RED
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Aluminum Material; Red Color; 3.73 Inch Overall Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 250 kcmil (Code) Conductor Size; 3/8 Inch Stud Size; 71H Die Index; 0.93 Inch L X 1.29 Inch W X 0.27 Inch Thk Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; 601 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210601540
• SKU Name: t&b 60154
