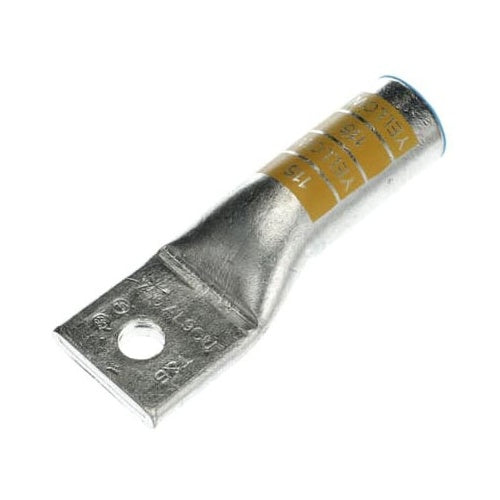

T&B 60178 750Kcmil Lug

Product Specifications

• UPC: 78621060178
• Number Of Pad Holes: 1
• Stud Size: 5/8 Inch
• Color: Yellow
• Die Index: 115
• Material: Electro Tin Plated Wrought Aluminum
• Overall Length: 6.03 Inch
• Approval: UL, CSA
• Catalog Number: 60178
• Brand Name: Color-Keyed
• Model: 601
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Aluminum/Copper
• Conductor Size: 750 KCMIL (Code)
• Barrel Type: Long, Straight
• Pad Size: 2 Inch Length x 2.13 Inch Width x 0.4 Inch Thickness
• Catalog Description: ALUMINUM ONE-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, 750 KCMIL WIRE, 900 COMPACT, 5/8 INCH BOLT SIZE, TIN PLATED, DIE CODE 115H, DIE COLOR CODE YELLOW
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Aluminum Material; Yellow Color; 6.03 Inch Overall Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 750 kcmil (Code) Conductor Size; 5/8 Inch Stud Size; 115 Die Index; 2 Inch Length X 2.13 Inch Width X 0.4 Inch Thickness Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; 601 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210601786
• SKU Name: t&b 60178
