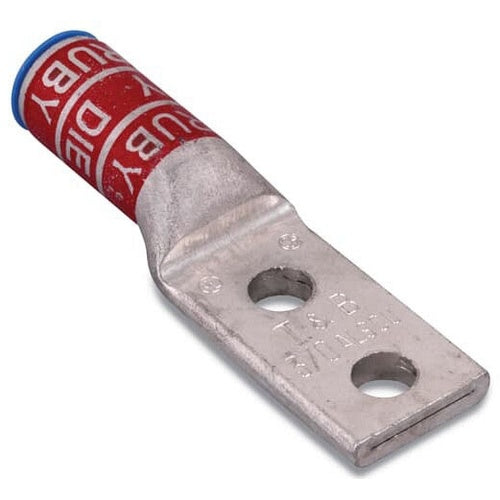

T&B 60242 3/0Awg Ruby 2-Hole Aluminum/Copper Lug

Product Specifications

• UPC: 78621060242
• Pad Hole Spacing: 1 Inch
• Stud Size: 3/8 Inch
• Color: Ruby
• Die Index: 60
• Material: Electro Tin Plated Wrought Aluminum
• Overall Length: 3.66 Inch
• Approval: UL, CSA
• Catalog Number: 60242
• Model: 602
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Aluminum/Copper
• Conductor Size: 3/0 AWG
• Barrel Type: Long, Straight
• Pad Size: 1.18 Inch L x 1.063 Inch W x 0.22 Inch Thk
• Number Of Pad Holes: 2
• Catalog Description: ALUMINUM TWO-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, 3/0 AWG WIRE, 3/8 INCH BOLT SIZE, 1 INCH HOLE SPACING, TIN PLATED, DIE CODE 60, DIE COLOR CODE RUBY
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Aluminum Material; Ruby Color; 3.66 Inch Overall Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 3/0 AWG Conductor Size; 3/8 Inch Stud Size; 60 Die Index; 1.18 Inch L X 1.063 Inch W X 0.22 Inch Thk Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Long, Straight Barrel Type; 602 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210602424
• SKU Name: t&b 60242
