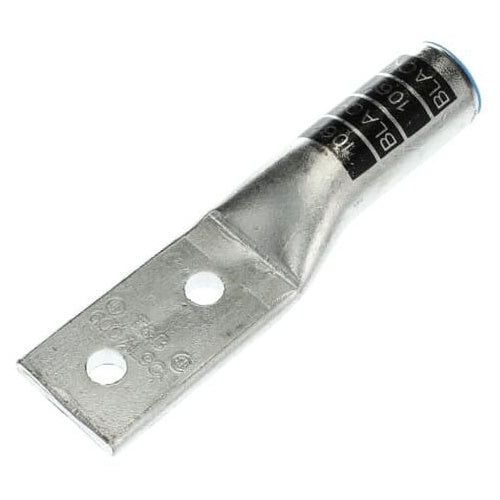

T&B 60275 600Kcmil Lug

Overview

Heavy-duty construction for enhanced durability, High-performance components designed for reliability, Easy installation process to minimize downtime

Product Specifications

• UPC: 78621060275
• Stud Size: 1/2 Inch
• Color: Black
• Die Index: 106
• Material: High Conductivity Electro Tin Plated Wrought Aluminum
• Overall Length: 6.83 Inch
• Approval: UL, CSA
• Additional Information: Temperature Rating 90 Deg C; Includes Blind End Inspection Hole
• Catalog Number: 60275
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Aluminum/Copper
• Conductor Size: 600 KCMIL (Code)
• Barrel Type: Long, Straight
• Pad Size: 3 Inch Length x 1.92 Inch Width x 0.37 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Catalog Description: ALUMINUM TWO-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, 600 KCMIL WIRE, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE CODE 106H, DIE COLOR CODE BLACK
• Category: Large Terminals & Connectors
• Full Technical Description: High Conductivity Electro Tin Plated Wrought Aluminum Material; Black Color; 6.83 Inch Overall Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 600 kcmil (Code) Conductor Size; 1/2 Inch Stud Size; 106 Die Index; 3 Inch Length X 1.92 Inch Width X 0.37 Inch Thickness Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight Barrel Type; Temperature Rating 90 Deg C; Includes Blind End Inspection Hole
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210602752
• SKU Name: T&B 60275
