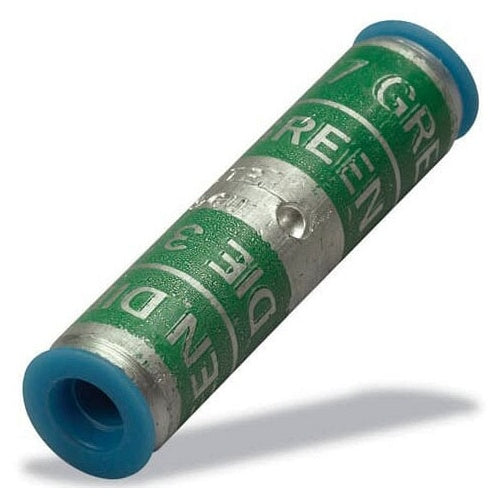

T&B 60501-TB Connector, Compression 2 Way

Overview

T&B 60501-TB Connector, Compression 2 Way

Product Specifications

• UPC: 78621060501
• Outer Diameter: 0.28 Inch
• Body Material: High Conductivity Electro Tin Plated Wrought Aluminum
• Approval: UL, CSA
• Additional Information: Die Code 24; Temperature Rating 90 Deg C
• Catalog Number: 60501-TB
• Type: 2-Way
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Size: 8 AWG Stranded
• Conductor Material: Aluminum/Copper
• Color Code: Blue
• Barrel Type: Standard
• Length: 1.19 Inch
• Catalog Description: TWO-WAY ALUMINUM SPLICE CONNECTOR, WIRE SIZE 8 STR, DIE CODE 24, DIE COLOR CODE BLUE
• Category: Large Terminals & Connectors
• Full Technical Description: 2-Way Type; 1.19 Inch; 0.28 Inch Outer Diameter; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; High Conductivity Electro Tin Plated Wrought Aluminum Body Material; 8 AWG Stranded Conductor Size; Blue Color Code; Standard Barrel Type; Die Code 24; Temperature Rating 90 Deg C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 786210605012
• SKU Name: t&b 60501tb

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
