Product information
Overview

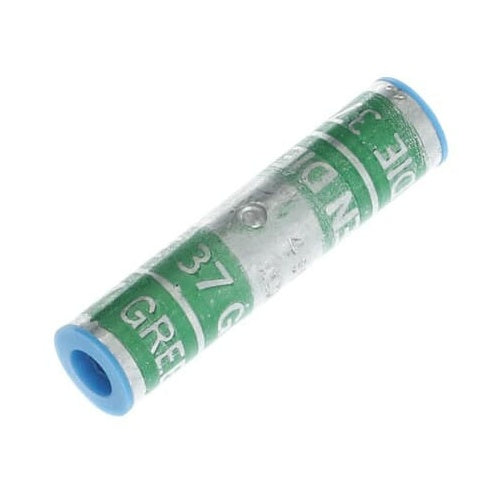

T&B 60512 Compression Connector, 2 Way
Product Specifications
- UPC: 78621060512
- Outer Diameter: 0.46 Inch
- Body Material: Wrought Electro Tin Plated High Conductivity Aluminum
- Approval: UL, CSA
- Additional Information: Die Code 37; Temperature Rating 90 Deg C
- Catalog Number: 60512
- Type: 2-Way
- Voltage Rating: 600 V to 35 KV
- Conductor Size: 4 AWG Stranded
- Conductor Material: Aluminum/Copper
- Color Code: Green
- Barrel Type: Standard
- Length: 1.81 Inch
- Catalog Description: TWO-WAY ALUMINUM SPLICE CONNECTOR, WIRE SIZE 4 STR, DIE CODE 37, DIE COLOR CODE GREEN
- Category: Large Terminals & Connectors
- Full Technical Description: 2-Way Type; 1.81 Inch; 0.46 Inch Outer Diameter; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; Wrought Electro Tin Plated High Conductivity Aluminum Body Material; 4 AWG Stranded Conductor Size; Green Color Code; Standard Barrel Type; Die Code 37; Temperature Rating 90 Deg C
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Compression Cable Splice
- Unspsc: 39121449
- UPC 12 Digit: 786210605128
- SKU Name: t&b 60512
