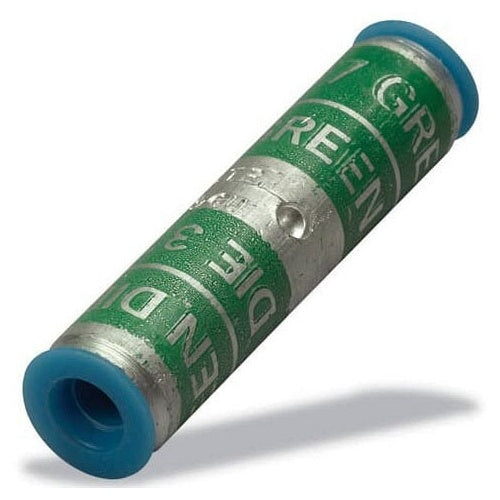

Color-Keyed® 60576 2-Way Standard Barrel Splice Connector, 700 kcmil Compact/Concentric/Stranded Aluminum/Copper Conductor, Die Code: 112, 5.44 in L, Aluminum

Product Specifications

• Catalog Number: T-B60576
• Part Number: 60576
• UPC: 786210605760
• Manufacturer: ABB - Installation Products
• Manufacturer Brand: Color-Keyed®
• Features: Manufactured from high conductivity wrought aluminum and electro-tin plated; Connectors are pre-filled with oxide inhibitor; Permits aluminum conductors to be spliced to copper or aluminum conductors; For aluminum and copper concentric conductors and compact code aluminum strandings; Connectors supplied with T&B oxide inhibitor compound in wire bore; 1/Pack, 10 Units
• Length: 5.44 in
• Material: Aluminum
• Temperature Rating: 90 deg C
• Voltage Rating: 35 kV
• Standard & Approvals: CSA Certified, RoHS Complaint, UL Listed
• Color: Purple
• Conductor Type: Aluminum/Copper
• Connector Type: Crimp
• Finish: Tin-Plated
• Die Code: 112
• Conductor Size: 700 kcmil
• Type: Two-Way Standard Barrel
• Application: For aluminum to copper or aluminum to aluminum splicing
