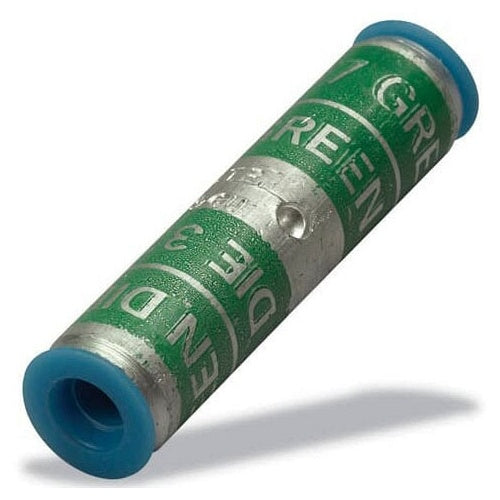

T&B 60584 2-Way Aluminum Splice Connector 1000 Wire

Overview

T&B 60584 2-Way Aluminum Splice Connector 1000 Wire

Product Specifications

• UPC: 78621060584
• Body Material: Wrought Electro Tin Plated High Conductivity Aluminum
• Approval: UL, CSA
• Additional Information: Die Code 140; Temperature Rating 90 Deg C
• Catalog Number: 60584
• Type: 2-Way
• Voltage Rating: 600 V to 35 KV
• Conductor Size: 1000 KCMIL
• Conductor Material: Aluminum/Copper
• Barrel Type: Standard
• Length: 6.69 Inch
• Outer Diameter: 1.77 Inch
• Catalog Description: TWO-WAY ALUMINUM SPLICE CONNECTOR, WIRE SIZE 1000 KCMIL, DIE CODE 140
• Category: Large Terminals & Connectors
• Full Technical Description: 2-Way Type; 6.69 Inch; 1.77 Inch Outer Diameter; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; Wrought Electro Tin Plated High Conductivity Aluminum Body Material; 1000 kcmil Conductor Size; Standard Barrel Type; Die Code 140; Temperature Rating 90 Deg C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 786210605845
• SKU Name: t&b 60584
