T&B 60945 Aluminum Reducing Splice 2/0Cu 4/0Al White

Overview

T&B 60945 Aluminum Reducing Splice 2/0Cu 4/0Al White

Product Specifications

• UPC: 78621060945
• Material: Electrolytic Tin Plated High Conductivity Wrought Aluminum
• Color: White
• Approval: UL, CSA
• Additional Information: Die Code 66H; Temperature Rating 90 Deg C
• Catalog Number: 60945
• Type: Reducing Connector
• Voltage Rating: 600 V
• Conductor Material: Aluminum/Copper
• Side A Conductor Size: 4/0 AWG (Aluminum)
• Side B Conductor Size: 2/0 AWG (Copper)

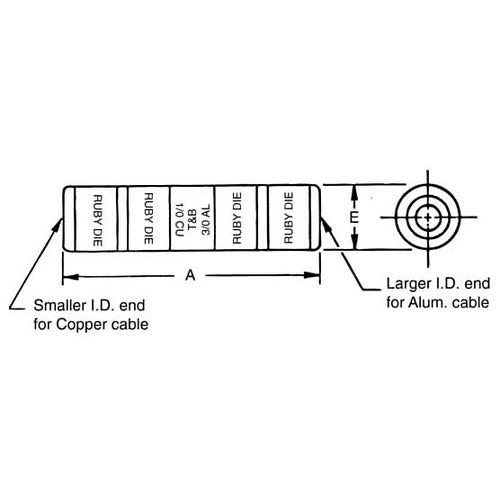

• Outer Diameter: 7/8 Inch
• Length: 3-3/4 Inch
• Catalog Description: ALUMINUM REDUCING SPLICE CONNECTOR FOR COPPER WIRE SIZE 2/0, ALUMINUM WIRE SIZE 4/0, TIN PLATED, DIE CODE 66H, DIE COLOR CODE WHITE
• Category: Large Terminals & Connectors
• Full Technical Description: Reducing Connector Type; Electrolytic Tin Plated High Conductivity Wrought Aluminum Material; White Color; 3-3/4 Inch; 7/8 Inch Outer Diameter; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V Voltage Rating; 2/0 AWG (Copper) Side B Conductor Size; 4/0 AWG (Aluminum) Side A Conductor Size; Die Code 66H; Temperature Rating 90 Deg C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Reducer
• Unspsc: 39121449
• UPC 12 Digit: 786210609454
• SKU Name: t&b 60945
