Overview

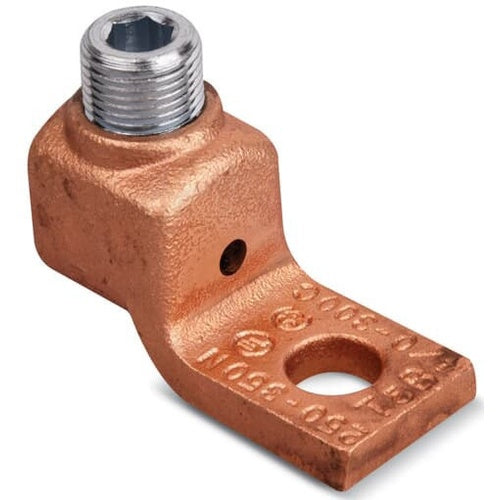

T&B 71020TB Locktite Copper Cone Screw Lug 2/0-500

Product Specifications

• UPC: 78621071020
• Material: Copper
• Number Of Pad Holes: 1
• Pad Size: 1-1/4 Inch L x 1-11/32 Inch W x 9/32 Inch Thk
• Stud Size: 1/2 Inch
• Overall Length: 2-3/4 Inch
• Approval: UL, CSA
• Catalog Number: 71020TB
• Brand Name: LOCKTITE[R]
• Type: Cone Screw
• Number Of Conductors: 1
• Minimum Conductor Size: 2/0 AWG
• Maximum Conductor Size: 500 KCMIL
• Conductor Material: Copper
• Pad Type: Straight
• Catalog Description: LOCKTITE COPPER CONE SCREW LUG FOR CONDUCTOR RANGE 2/0-500
• Category: Large Terminals & Connectors
• Full Technical Description: Cone Screw Type; Copper Material; 2-3/4 Inch Overall Length; 2/0 AWG min. Conductor Size; 500 kcmil Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1 Conductor(S); 1/2 Inch Stud Size; 1-1/4 Inch L X 1-11/32 Inch W X 9/32 Inch Thk Pad Size; 1 Pad Hole(S); Straight Pad Type; LOCKTITE[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210710204
• SKU Name: t&b 71020tb

Resources

• Manufacturer Spec Sheet
