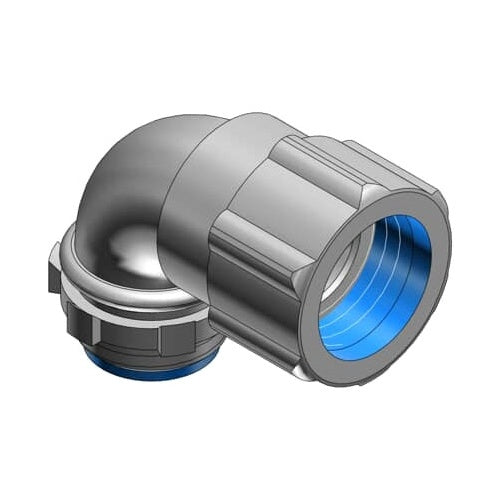

T&B 8130 1/2" Nylon Insul Short Elbow Iron No-Thread

Overview

High durability for extended operational life, Designed for easy installation and maintenance, Resistant to harsh environmental conditions

Product Specifications

• UPC: 78621008130
• Used On: Rigid/IMC Conduit
• Additional Information: Applicable Standard Federal Specification WF-408, NEMA FB1, NFPA 70; Thread Size 1/2 Inch
• Catalog Number: 8130
• Installation: Threadless
• Bend Angle: 90 Deg
• Trade Size: 1/2 Inch
• Throat Type: Nylon Insulated
• Constructional Feature: Concrete Tight
• Material: Electro Zinc Plated Malleable Iron Body, Case Hardened Electro Zinc Plated Steel Ring, Electro Zinc Plated Steel Gland/Nut, Hardened Electro Zinc Plated Coated Steel Locknut
• Approval: UL E23018, CSA 2884
• Catalog Description: 1/2 INCH THREADLESS SHORT ELBOW, MALLEABLE IRON AND NYLON INSULATED FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Electro Zinc Plated Malleable Iron Body, Case Hardened Electro Zinc Plated Steel Ring, Electro Zinc Plated Steel Gland/Nut, Hardened Electro Zinc Plated Coated Steel Locknut Material; Rigid/Imc Conduit Used on; Threadless Installation; UL E23018, CSA 2884 Approval; 1/2 Inch Trade Size; Concrete Tight; 90 Deg Bend Angle; Nylon Insulated Throat Type; Applicable Standard Federal Specification Wf-408, NEMA FB1, NFPA 70; Thread Size 1/2 Inch
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Elbow Joint
• Unspsc: 39131717
• UPC 12 Digit: 786210081304
• SKU Name: T&B 8130
