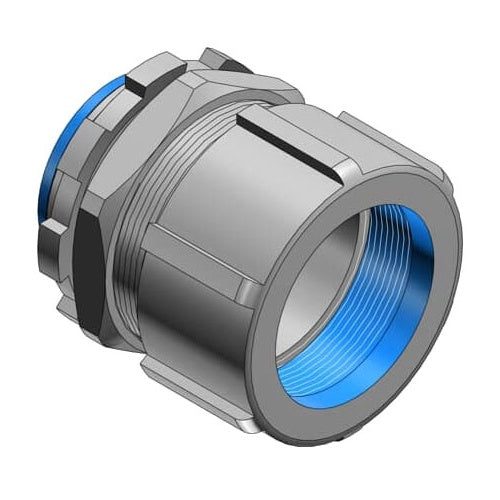

T&B 8323 1" Rigid Insulated Compression Connector

Overview

High durability and resistance to environmental factors, Easy installation and maintenance, Compatible with a wide range of industrial systems

Product Specifications

• UPC: 78621008323
• Constructional Feature: Concrete Tight
• Standard Package: 25
• Approval: UL 514-B, CSA C22.2
• Used On: RIGID/IMC Conduit
• Additional Information: Applicable Standard Federal Specification WF-408, NEMA, NFPA 70; to Connect and Effectively Bond Threadless Rigid Metal Conduit/Intermediate Metal Conduit to a Box or Enclosure or to Couple Ends of Threadless Conduit
• Catalog Number: 8323
• Type: Threadless
• Throat Type: Nylon Insulated
• Trade Size: 1 Inch
• Diameter: 1-29/32 Inch
• Length: 2 Inch
• Thread Length: 9/16 Inch
• Material: Electro Zinc Plated Chromate Coated Malleable Iron Body, Case Hardened Electro Zinc Plated Chromate Coated Steel Ring, Electro Zinc Plated Chromate Coated Steel Gland/Nut, Hardened Electro Zinc Plated Chromate Coated Steel Locknut
• Catalog Description: 1 INCH THREADLESS CONNECTOR, MALLEABLE IRON WITH NYLON INSULATOR FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threadless Type; Electro Zinc Plated Chromate Coated Malleable Iron Body, Case Hardened Electro Zinc Plated Chromate Coated Steel Ring, Electro Zinc Plated Chromate Coated Steel Gland/Nut, Hardened Electro Zinc Plated Chromate Coated Steel Locknut Material; 2 Inch; Rigid/Imc Conduit Used on; 9/16 Inch Thread Length; UL 514-B, CSA C22.2 Approval; 1-29/32 Inch Diameter; 25 Standard Package; 1 Inch Trade Size; Concrete Tight; Nylon Insulated Throat Type; Applicable Standard Federal Specification Wf-408, NEMA, NFPA 70; to Connect and Effectively Bond Threadless Rigid Metal Conduit/Intermediate Metal Conduit to A Box or Enclosure or to Couple Ends of Threadless Conduit
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210083230
• SKU Name: T&B 8323
