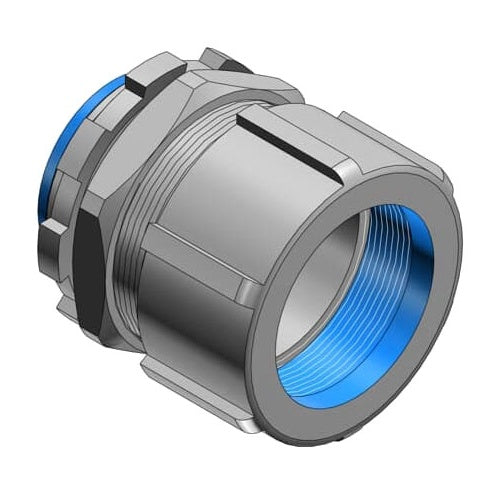

T&B 8523 1-1/2" Insulated Threadless Connector

Overview

T&B 8523 1-1/2" Insulated Threadless Connector

Product Specifications

• UPC: 78621008523
• Constructional Feature: Concrete Tight
• Standard Package: 10
• Approval: UL 514-B, CSA C22.2
• Used On: RIGID/IMC Conduit
• Additional Information: Applicable Standard Federal Specification WF-408, NEMA, NFPA 70; to Connect and Effectively Bond Threadless Rigid Metal Conduit/Intermediate Metal Conduit to a Box or Enclosure or to Couple Ends of Threadless Conduit
• Catalog Number: 8523
• Type: Threadless
• Throat Type: Nylon Insulated
• Trade Size: 1-1/2 Inch
• Diameter: 2-11/16 Inch
• Length: 2-5/8 Inch
• Thread Length: 3/4 Inch
• Material: Electro Zinc Plated Chromate Coated Malleable Iron Body/Gland/Nut, Case Hardened Electro Zinc Plated Chromate Coated Steel Ring, Electro Zinc Plated Chromate Coated Steel Locknut
• Catalog Description: 1-1/2 INCH THREADLESS CONNECTOR, MALLEABLE IRON WITH NYLON INSULATOR FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threadless Type; Electro Zinc Plated Chromate Coated Malleable Iron Body/Gland/Nut, Case Hardened Electro Zinc Plated Chromate Coated Steel Ring, Electro Zinc Plated Chromate Coated Steel Locknut Material; 2-5/8 Inch; Rigid/Imc Conduit Used on; 3/4 Inch Thread Length; UL 514-B, CSA C22.2 Approval; 2-11/16 Inch Diameter; 10 Standard Package; 1-1/2 Inch Trade Size; Concrete Tight; Nylon Insulated Throat Type; Applicable Standard Federal Specification Wf-408, NEMA, NFPA 70; to Connect and Effectively Bond Threadless Rigid Metal Conduit/Intermediate Metal Conduit to A Box or Enclosure or to Couple Ends of Threadless Conduit
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210085234
• SKU Name: t&b 8523
