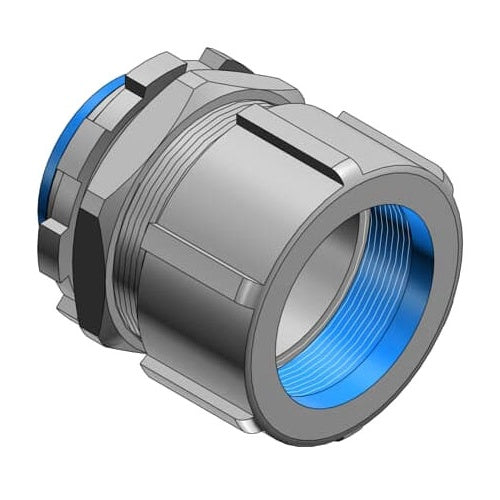

T&B 8621 2" Threadless Connector

Overview

T&B 8621 2" Threadless Connector

Product Specifications

• UPC: 78621008621
• Standard Package: 5 per Pack
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Applicable Standard Federal Specification WF-408/H-28, NEMA FB-1, NFPA 70, ANSI C80.4
• Catalog Number: 8621
• Type: Threadless
• Throat Type: Non-Insulated
• Trade Size: 2 Inch
• Diameter: 3-1/4 Inch
• Length: 2-15/16 Inch
• Thread Length: 27/32 Inch
• Material: Zinc Electroplated with Chromate Coated Malleable Iron (Body/Gland/Nut), Case Hardened Zinc Electroplated with Chromate Coated Steel (Ring), Zinc Electroplated with Chromate Coated Steel (Locknut)
• Catalog Description: 2 INCH THREADLESS CONNECTOR, MALLEABLE IRON FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threadless Type; Zinc Electroplated With Chromate Coated Malleable Iron (Body/Gland/Nut), Case Hardened Zinc Electroplated With Chromate Coated Steel (Ring), Zinc Electroplated With Chromate Coated Steel (Locknut) Material; 2-15/16 Inch; Imc/Rigid Conduit Used on; 27/32 Inch Thread Length; UL, CSA Approval; 3-1/4 Inch Diameter; 5 Per Pack Standard Package; 2 Inch Trade Size; Non-Insulated Throat Type; Applicable Standard Federal Specification Wf-408/H-28, NEMA FB-1, NFPA 70, ANSI C80.4
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210086217
• SKU Name: t&b 8621

Resources

• Manufacturer Spec Sheet
