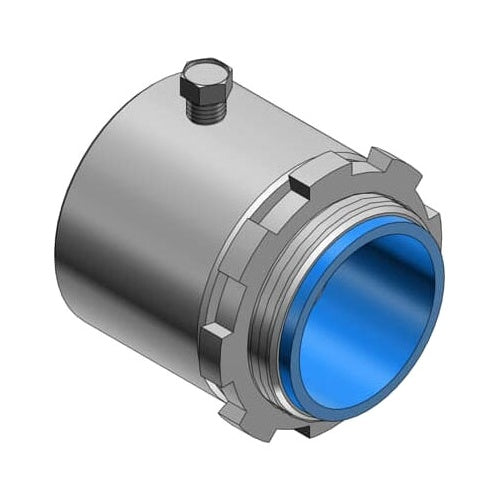

T&B 8725-TB Insulated Set Screw Connector

Overview

T&B 8725-TB Insulated Set Screw Connector

Product Specifications

• UPC: 78621008725
• Approval: UL 514-B, CSA C22.2
• Used On: RIGID/IMC Conduit
• Additional Information: Applicable Standard Federal Specification WF-408, NEMA, NFPA 70; Application to Connect and Effectively Bond Threadless Rigid Metal Conduit or Intermediate Metal Conduit to a Box or Enclosure or to Couple Ends of Threadless Conduit
• Catalog Number: 8725-TB
• Type: Set Screw
• Throat Type: Nylon Insulated
• Trade Size: 2-1/2 Inch
• Length: 3-3/8 Inch
• Material: Electro Zinc Plated Malleable Iron Body/Locknut, Electro Zinc Plated Hardened Steel Screw
• Constructional Feature: Concrete Tight
• Standard Package: 5
• Catalog Description: 2-1/2 INCH SET SCREW CONNECTOR, MALLEABLE IRON WITH NYLON INSULATED THROAT FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Set Screw Type; Electro Zinc Plated Malleable Iron Body/Locknut, Electro Zinc Plated Hardened Steel Screw Material; 3-3/8 Inch; Rigid/Imc Conduit Used on; UL 514-B, CSA C22.2 Approval; 5 Standard Package; 2-1/2 Inch Trade Size; Concrete Tight; Nylon Insulated Throat Type; Applicable Standard Federal Specification Wf-408, NEMA, NFPA 70; Application to Connect and Effectively Bond Threadless Rigid Metal Conduit or Intermediate Metal Conduit to A Box or Enclosure or to Couple Ends of Threadless Conduit
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39131707
• UPC 12 Digit: 786210087252
• SKU Name: t&b 8725tb

Resources

• Manufacturer Spec Sheet
