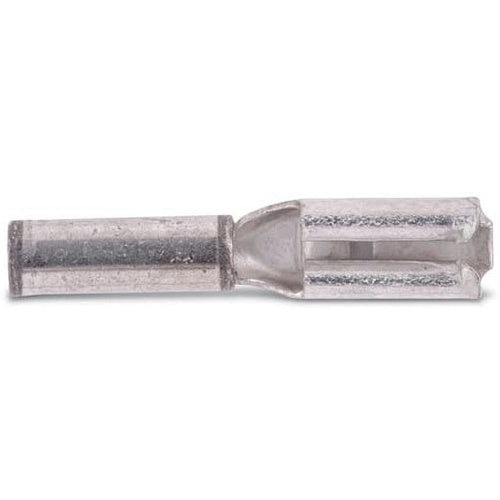

T&B A18-111F Non-Insulated Female-110 Disconnect 22-18 Awg

Overview

T&B A18-111F Non-Insulated Female-110 Disconnect 22-18 Awg

Product Specifications

• UPC: 78621080227
• Temperature Rating: 150 Deg C
• Standard Package: 500 per Outer Pack
• Additional Information: Voltage Rating 300 Volt; Overall Dimension 0.59 Inch Length x 0.15 Inch Width; Material Electro Tin Plated Brass
• Catalog Number: A18-111F
• Brand Name: Sta-Kon
• Model: 110
• Tab Size: 0.11 Inch x 0.02 Inch
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 18 AWG
• Color: Metallic
• Insulation Type: Non-Insulated
• Catalog Description: NON-INSULATED FEMALE DISCONNECT, LENGTH 0.59 INCHES, WIDTH 0.15 INCHES, TAB SIZE .110X.020 INCHES, WIRE RANGE #22-18 AWG, COPPER, TIN PLATED, 100 PIECES
• Category: Small Terminals & Connectors
• Full Technical Description: Metallic Color; 22 AWG min. Conductor Size; 18 AWG Max. Conductor Size; 150 Deg C Temperature Rating; 500 Per Outer Pack Standard Package; Non-Insulated Insulation Type; 0.11 Inch X 0.02 Inch Tab Size; Voltage Rating 300 Volt; Overall Dimension 0.59 Inch Length X 0.15 Inch Width; Material Electro Tin Plated Brass; 110 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Female Disconnect
• Unspsc: 39121447
• UPC 12 Digit: 786210802275
• SKU Name: t&b a18111f

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
