Product information
Overview

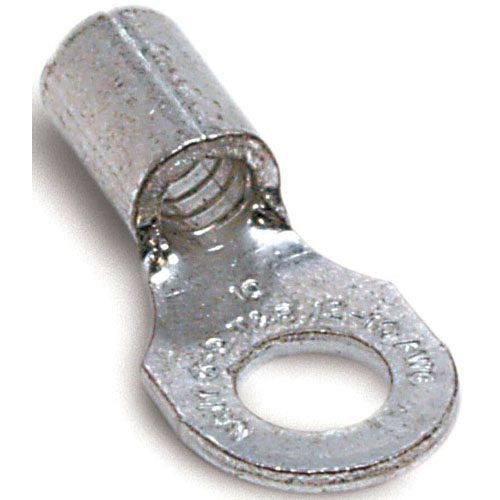

T&B A18-38 Non-Insulated Ring Terminal 22-16, 3/8, Meta
Product Specifications
- UPC: 78621060814
- Temperature Rating: 150 Deg C
- Standard Package: 1000
- Approval: UL 486-A, CSA 22.2
- Additional Information: Dimension 0.99 Inch L x 0.54 Inch W x 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
- Catalog Number: A18-38
- Model: A
- Type: Standard
- Minimum Conductor Size: 22 AWG
- Maximum Conductor Size: 16 AWG
- Color: Metallic
- Insulation Type: Non-Insulated
- Stud Size: 3/8 Inch
- Catalog Description: NON-INSULATED RING TERMINAL, LENGTH .99 INCHES, WIDTH .54 INCHES, BOLT HOLE 3/8 INCH, WIRE RANGE #22-#16 AWG, COPPER, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; Metallic Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 150 Deg C Temperature Rating; 1000 Standard Package; 3/8 Inch Stud Size; Non-Insulated Insulation Type; Dimension 0.99 Inch L X 0.54 Inch W X 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; A Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210608143
- SKU Name: t&b a1838
