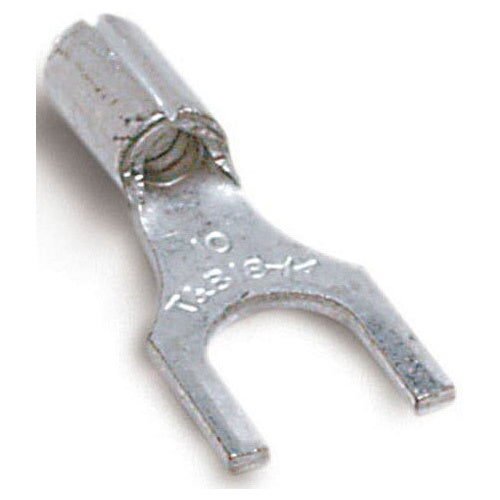

T&B A18-6F Non-Insulated Fork Terminal 22-16 No6

Overview

T&B A18-6F Non-Insulated Fork Terminal 22-16 No6

Product Specifications

• UPC: 78621080299
• Standard Package: 500 per Outer Pack
• Approval: UL, CSA
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 0.72 Inch Length x 1/4 Inch Width; Barrel Type Serrated Barrel; Material Copper; Finish Electro Tin Plated
• Catalog Number: A18-6F
• Brand Name: Sta-Kon
• Type: Standard
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 16 AWG
• Insulation Type: Non-Insulated
• Stud Size: #6
• Temperature Rating: 150 Deg C
• Catalog Description: NON-INSULATED FORK TERMINAL, LENGTH .72 INCHES, WIDTH .25 INCHES, BOLT HOLE #6, WIRE RANGE #22-#16 AWG, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL, CSA Approval; 150 Deg C Temperature Rating; 500 Per Outer Pack Standard Package; #6 Stud Size; Non-Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 0.72 Inch Length X 1/4 Inch Width; Barrel Type Serrated Barrel; Material Copper; Finish Electro Tin Plated
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Fork Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210802992
• SKU Name: t&b a186f
