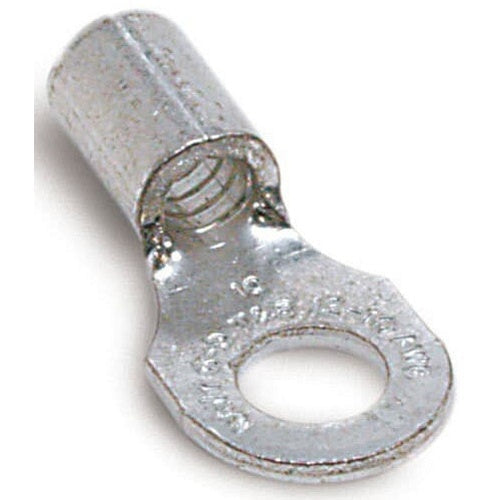

T&B A71 Non-Insulated Ring Terminal 22-16 Bolt 1/4

Overview

T&B A71 Non-Insulated Ring Terminal 22-16 Bolt 1/4

Product Specifications

• UPC: 78621080798
• Temperature Rating: 150 Deg C
• Standard Package: 10000 per Outer Pack
• Approval: UL 486A, CSA C22.2
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 0.92 Inch Length x 1/2 Inch Width x 0.03 Inch Thickness; Material Copper; Finish Electro Tin Plated
• Catalog Number: A71
• Brand Name: Sta-Kon
• Type: Standard
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 16 AWG
• Color: Metallic
• Insulation Type: Non-Insulated
• Stud Size: 1/4 Inch
• Catalog Description: NON-INSULATED RING TERMINAL, LENGTH .92 INCHES, WIDTH .50 INCHES, BOLT HOLE 1/4 INCH, WIRE RANGE #22-#16 AWG, COPPER, TIN PLATED, 1,000 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Metallic Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486A, CSA C22.2 Approval; 150 Deg C Temperature Rating; 10000 Per Outer Pack Standard Package; 1/4 Inch Stud Size; Non-Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 0.92 Inch Length X 1/2 Inch Width X 0.03 Inch Thickness; Material Copper; Finish Electro Tin Plated
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210807980
• SKU Name: t&b a71
