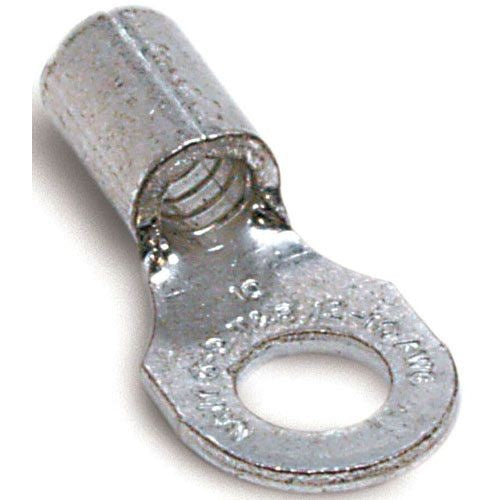

T&B A72 Non-Insulated Ring Terminal 22-16 Bolt 5/16

Overview

T&B A72 Non-Insulated Ring Terminal 22-16 Bolt 5/16

Product Specifications

• UPC: 78621080800
• Standard Package: 1000
• Approval: UL 486-A, CSA 22.2
• Additional Information: SERRATED BRAZED SEAM BARREL; MATERIAL ELECTRO TIN PLATED ELECTROLYTIC COPPER
• Catalog Number: A72
• Brand Name: Sta-Kon.
• Model: A
• Type: STANDARD
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 16 AWG
• Insulation Type: NON INSULATED
• Stud Size: 5/16 INCH
• Catalog Description: NON-INSULATED RING TERMINAL, LENGTH .92 INCHES, WIDTH .50 INCHES, BOLT HOLE 5/16 INCH, WIRE RANGE #22-#16 AWG, COPPER, TIN PLATED, 1,000 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 1000 Standard Package; 5/16 Inch Stud Size; Non Insulated Insulation Type; Sta-Kon. Brand; Serrated Brazed Seam Barrel; Material Electro Tin Plated Electrolytic Copper; A Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210808000
• SKU Name: t&b a72

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
