Product information
Overview

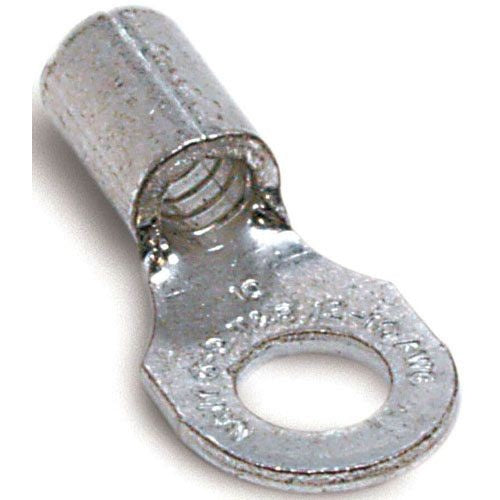

T&B A85 Non-Insulated Ring Terminal 22-16 Bolt No6
Product Specifications
- UPC: 78621080790
- Additional Information: Size 0.72 Inch Length x 0.25 Inch Width; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
- Catalog Number: A85
- Minimum Conductor Size: 22 AWG
- Maximum Conductor Size: 16 AWG
- Insulation Type: Non-Insulated
- Stud Size: #6
- Temperature Rating: 150 Deg C
- Standard Package: 1000 per Pack
- Approval: UL 486A/B, CSA 22.2
- Catalog Description: NON-INSULATED RING TERMINAL, LENGTH .72 INCHES, WIDTH .25 INCHES, BOLT HOLE #6, WIRE RANGE #22-#16 AWG, COPPER, TIN PLATED, 1,000 PACK
- Category: Small Terminals & Connectors
- Full Technical Description: 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486A/B, CSA 22.2 Approval; 150 Deg C Temperature Rating; 1000 Per Pack Standard Package; #6 Stud Size; Non-Insulated Insulation Type; Size 0.72 Inch Length X 0.25 Inch Width; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210807904
- SKU Name: t&b a85
