Product information
Overview

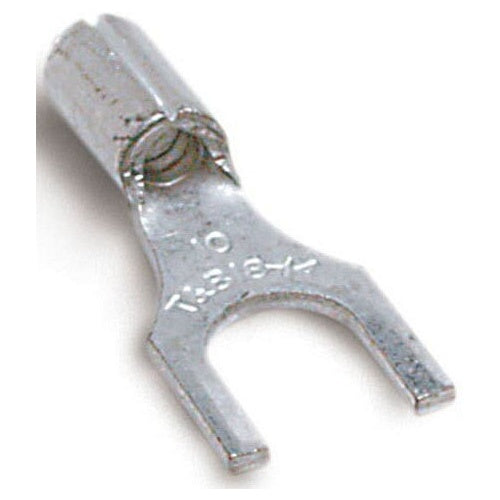

T&B B14-14F Non-Insulated Fork Terminal, 18-14, 1/4, Meta
Product Specifications
- UPC: 78621080329
- Standard Package: 500
- Approval: UL, CSA
- Additional Information: Size 0.9 Inch L x 0.44 Inch W; Serrated Barrel; Material Electrolytic Tin Plated Copper
- Catalog Number: B14-14F
- Model: B
- Type: Standard
- Minimum Conductor Size: 18 AWG
- Maximum Conductor Size: 14 AWG
- Insulation Type: Non-Insulated
- Stud Size: 1/4 Inch
- Temperature Rating: 150 Deg C
- Catalog Description: NON-INSULATED FORK TERMINAL, LENGTH .90 INCHES, WIDTH .44 INCHES, BOLT HOLE 1/4 INCH, WIRE RANGE #18-#14 AWG, COPPER, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL, CSA Approval; 150 Deg C Temperature Rating; 500 Standard Package; 1/4 Inch Stud Size; Non-Insulated Insulation Type; Size 0.9 Inch L X 0.44 Inch W; Serrated Barrel; Material Electrolytic Tin Plated Copper; B Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Fork Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210803296
- SKU Name: t&b b1414f
