Product information
Overview

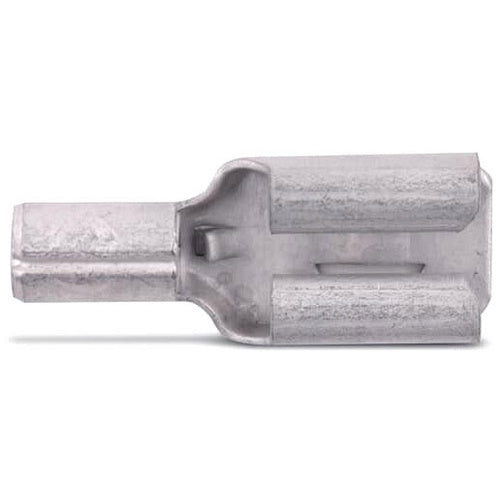

T&B B14-250 Non-Insulated Female .250X.032 Disconnect 16-14Awg
Product Specifications
- UPC: 78621080334
- Temperature Rating: 150 Deg C
- Standard Package: 100 per Pack
- Approval: UL, CSA
- Additional Information: Overall Dimension 0.73 Inch Length x 0.31 Inch Width; Voltage Rating 600 Volt; Material Electro Tin Plated Brass; Packaging Type Bulk
- Catalog Number: B14-250
- Model: 250
- Type: Brazed Seam, Serrated Barrel
- Tab Size: 0.25 Inch x 0.032 Inch
- Minimum Conductor Size: 16 AWG
- Maximum Conductor Size: 14 AWG
- Color: Metallic
- Insulation Type: Non-Insulated
- Catalog Description: NON-INSULATED FEMALE DISCONNECT, LENGTH .73 INCHES, WIDTH .31 INCHES, TAB SIZE .250X.032, WIRE RANGE #16-#14 AWG, COPPER, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Brazed Seam, Serrated Barrel Type; Metallic Color; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL, CSA Approval; 150 Deg C Temperature Rating; 100 Per Pack Standard Package; Non-Insulated Insulation Type; 0.25 Inch X 0.032 Inch Tab Size; Overall Dimension 0.73 Inch Length X 0.31 Inch Width; Voltage Rating 600 Volt; Material Electro Tin Plated Brass; Packaging Type Bulk; 250 Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Female Disconnect
- Unspsc: 39121447
- UPC 12 Digit: 786210803340
- SKU Name: t&b b14250
