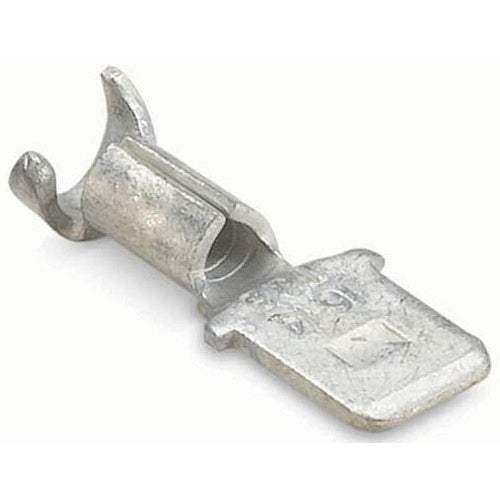

T&B B14-250T Non-Insulated Male-250 Tab 20-14 Len .87,

Overview

T&B B14-250T Non-Insulated Male-250 Tab 20-14 Len .87,

Product Specifications

• UPC: 78621080337
• Temperature Rating: 150 Deg C
• Standard Package: 100
• Approval: UL, CSA
• Additional Information: Overall Dimension 0.87 Inch L; Material Electro-Tin Plated Brass
• Catalog Number: B14-250T
• Model: 250
• Type: Tab Style, Barrel Entry
• Tab Size: 0.25 Inch x 0.032 Inch
• Minimum Conductor Size: 20 AWG
• Maximum Conductor Size: 14 AWG
• Color: Metallic
• Insulation Type: Non-Insulated
• Catalog Description: NON-INSULATED MALE TAB GRIP, LENGTH .87 INCHES, TAB SIZE .250X.032, WIRE RANGE #20-#14 AWG, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Tab Style, Barrel Entry Type; Metallic Color; 20 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL, CSA Approval; 150 Deg C Temperature Rating; 100 Standard Package; Non-Insulated Insulation Type; 0.25 Inch X 0.032 Inch Tab Size; Overall Dimension 0.87 Inch L; Material Electro-Tin Plated Brass; 250 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Male Disconnect
• Unspsc: 39121447
• UPC 12 Digit: 786210803371
• SKU Name: t&b b14250t
