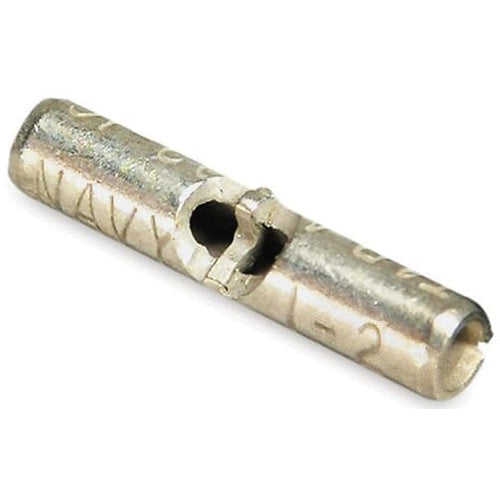

T&B BB2 Non-Insulated Butt Splce 18-14 Awg Len .63

Overview

T&B BB2 Non-Insulated Butt Splce 18-14 Awg Len .63

Product Specifications

• UPC: 78621081052
• Color: Metallic
• Material: Electro Tin Plated Copper
• Temperature Rating: 150 Deg C
• Standard Package: 1000
• Approval: UL 94, CSA
• Catalog Number: BB2
• Model: BB
• Type: Butt
• Voltage Rating: 600 V
• Length: 0.62 Inch
• Barrel Outer Diameter: 0.16 Inch
• Conductor Size: 16 to 14 AWG
• Insulation Type: Non-Insulated
• Catalog Description: NON-INSULATED BUTT SPLICE, LENGTH 0.62 INCH, WIDTH 0.16 INCH, WIRE RANGE 18-14 AWG, COPPER, TIN PLATED, 1,000 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Butt Type; Electro Tin Plated Copper Material; Metallic Color; 0.62 Inch; UL 94, CSA Approval; 600 V Voltage Rating; 150 Deg C Temperature Rating; 1000 Standard Package; 16 to 14 AWG Conductor Size; Non-Insulated Insulation Type; 0.16 Inch Barrel Outer Diameter; BB Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Splice Connector
• Unspsc: 39121449
• UPC 12 Digit: 786210810522
• SKU Name: t&b bb2

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
