Overview

High-performance electrical connection solution, Durable construction for long-lasting reliability, Easy installation with user-friendly design

Product Specifications

• UPC: 78621008898
• Size: 18.38 Inch L x 4.25 Inch W x 4.38 Inch H
• Installation: Screw
• Material: Aluminum Acrylic Painted Electro Galvanized Gray Iron Alloy Body, Stainless Steel Screw, Neoprene Gasket
• Approval: UL 514B, UL E2969, CSA C22.2
• Used On: Rigid/IMC Conduit
• Additional Information: Includes Cover, Gasket, Screw
• Catalog Number: BC8-TB
• Model: BC
• Access Opening: Straight Side
• Configuration: C
• Cover Type: Gray Iron
• Hub Location: Straight
• Number Of Hubs: 2
• Hub Size: 3 Inch

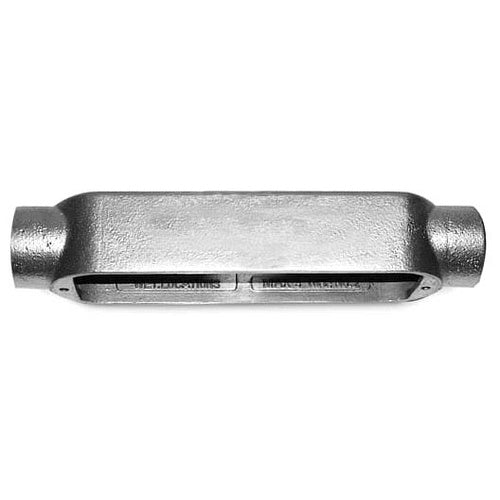

• Catalog Description: 3 INCH MOGUL CONDUIT OUTLET BODY, COVER AND GASKET, C STYLE, THRU-FEED, BODY MATERIAL GRAY IRON, FINISH ELECTRO GALVANIZED, COVER MATERIAL GRAY IRON WITH STAINLESS STEEL COVER SCREWS, GASKET MATERIAL NEOPRENE
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Aluminum Acrylic Painted Electro Galvanized Gray Iron Alloy Body, Stainless Steel Screw, Neoprene Gasket Material; 18.38 Inch L X 4.25 Inch W X 4.38 Inch H Size; Rigid/Imc Conduit Used on; 3 Inch Hub Size; Screw Installation; C Configuration; 2 Hub(S); UL 514B, UL E2969, CSA C22.2 Approval; Gray Iron Cover Type; Straight Hub Location; Straight Side Access Opening; Mogul Brand; Includes Cover, Gasket, Screw; BC Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210088983
• SKU Name: T&B BC8TB
