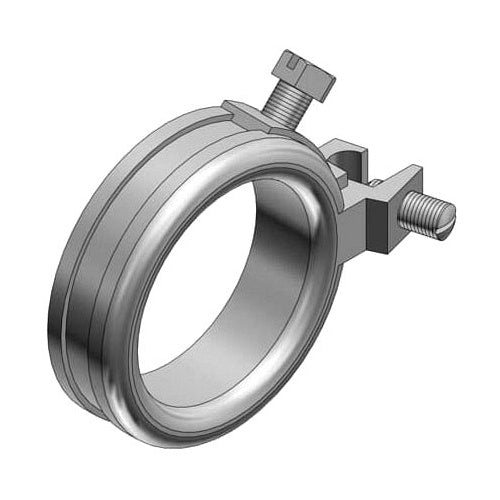

T&B BG300-14-20 3" Ground Bushing For 14-2/0 Range

Overview

T&B BG300-14-20 3" Ground Bushing For 14-2/0 Range

Product Specifications

• UPC: 78621016273
• Height: 1.181 Inch
• Material: Zinc Plated Malleable Iron (Body), Brass (Mounting Screw)
• Standard Package: 10 per Outer Pack
• Approval: UL 514B/467, CSA C22.2
• Used On: Threaded/Threadless IMC/Rigid Conduit
• Catalog Number: BG300-14-20
• Brand Name: Blackjack[R]
• Type: Threadless, Lug Screw
• Trade Size: 3 Inch
• Wire Size: 14 to 2/0 AWG
• Lug Type: Stainless Steel Screw
• Throat Type: Insulated
• Diameter: 4.042 Inch
• Catalog Description: 3 INCH BLACKJACK GROUNDING BUSHING, MALLEABLE IRON ZINC PLATED, WIRE RANGE 14 TO 2/0 FOR USE WITH THREADED OR THREADLESS RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threadless, Lug Screw Type; Zinc Plated Malleable Iron (Body), Brass (Mounting Screw) Material; 1.181 Inch; Threaded/Threadless Imc/Rigid Conduit Used on; 14 to 2/0 AWG Wire Size; UL 514B/467, CSA C22.2 Approval; 4.042 Inch Diameter; 10 Per Outer Pack Standard Package; 3 Inch Trade Size; Insulated Throat Type; Stainless Steel Screw Lug Type; BLACKJACK[R] Brand
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 786210162737
• SKU Name: t&b bg3001420
