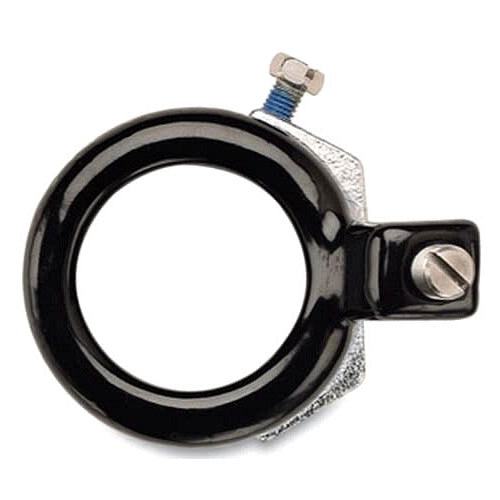

T&B BGA350-14-20 3-1/2" Ground Bushing Aluminum

Overview

T&B BGA350-14-20 3-1/2" Ground Bushing Aluminum

Product Specifications

• UPC: 78621016302
• Diameter: 4.542 INCH
• Height: 1.181 INCH
• Material: MECHANICAL GALVANIZED ALUMINUM
• Standard Package: 5
• Approval: UL, CSA
• Used On: THREADED/THREADLESS RIGID CONDUIT/IMC
• Catalog Number: BGA350-14-20
• Brand Name: BLACKJACK
• Type: THREADLESS
• Trade Size: 3-1/2 INCH
• Wire Size: 14 TO 2/0 AWG
• Lug Type: STAINLESS STEEL SCREW
• Conductor Material: COPPER/ALUMINUM
• Throat Type: NYLON INSULATED
• Catalog Description: 3-1/2 INCH BLACKJACK GROUNDING BUSHING, ALUMINUM, GALVANIZED, WIRE RANGE 14 TO 2/0 FOR USE WITH THREADED OR THREADLESS RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Threadless Type; Mechanical Galvanized Aluminum Material; 1.181 Inch; Threaded/Threadless Rigid Conduit/Imc Used on; 14 to 2/0 AWG Wire Size; Copper/Aluminum Conductor Material; UL, CSA Approval; 4.542 Inch Diameter; 5 Standard Package; 3-1/2 Inch Trade Size; Nylon Insulated Throat Type; Stainless Steel Screw Lug Type; BLACKJACK[R] Brand
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 786210163024
• SKU Name: t&b bga3501420

Resources

• Product Spec Sheet
