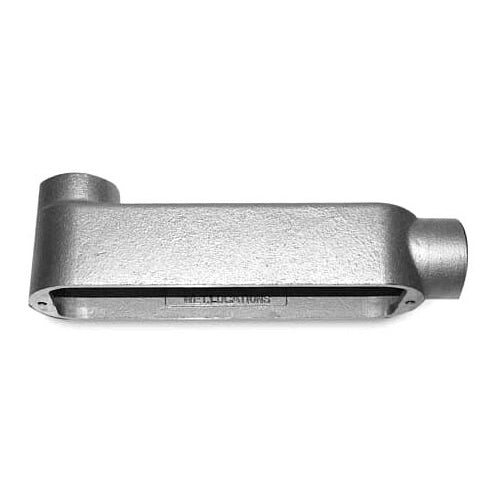

T&B BLB10-TB 4" Mogul Body, Iron, LB Style

Overview

T&B BLB10-TB 4" Mogul Body, Iron, LB Style

Product Specifications

• UPC: 78621008885
• Size: 22.16 Inch L x 5.25 Inch W x 7 Inch H
• Installation: Threaded
• Material: Aluminum Acrylic Painted Electro Galvanized Gray Iron Alloy Body, Stainless Steel Screw, Neoprene Gasket
• Approval: UL 514B, UL E2969, CSA C22.2
• Used On: Rigid/IMC Conduit
• Additional Information: Applicable Standard Federal Specification WC-586D; Includes Cover, Gasket, Screw
• Catalog Number: BLB10-TB
• Model: B
• Access Opening: Back
• Configuration: LB
• Cover Type: Gray Iron, Screw-On
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 4 Inch
• Catalog Description: 4 INCH MOGUL CONDUIT OUTLET BODY, COVER AND GASKET, BACK OPENING, BODY MATERIAL GRAY IRON, FINISH ELECTRO GALVANIZED, COVER MATERIAL GRAY IRON WITH STAINLESS STEEL COVER SCREWS, GASKET MATERIAL NEOPRENE
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Aluminum Acrylic Painted Electro Galvanized Gray Iron Alloy Body, Stainless Steel Screw, Neoprene Gasket Material; 22.16 Inch L X 5.25 Inch W X 7 Inch H Size; Rigid/Imc Conduit Used on; 4 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514B, UL E2969, CSA C22.2 Approval; Gray Iron, Screw-on Cover Type; 90 Deg Hub Location; Back Access Opening; Mogul Brand; Applicable Standard Federal Specification WC-586D; Includes Cover, Gasket, Screw; B Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210088853
• SKU Name: t&b blb10tb

Resources

• Manufacturer Spec Sheet
