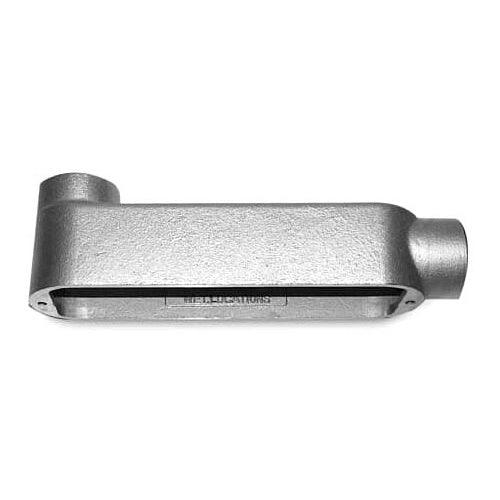

T&B BLB6-TB 2" Mogul Body, Iron, LB Style

Overview

T&B BLB6-TB 2" Mogul Body, Iron, LB Style

Product Specifications

• UPC: 78621008881
• Size: 12.58 Inch Length x 3 Inch Width x 4.16 Inch Height
• Installation: Threaded
• Material: Aluminum Acrylic Painted Electrogalvanized Gray Iron
• Form Type: Mogul
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Includes Cover, Gasket, Stainless Steel Screw
• Catalog Number: BLB6-TB
• Model: BL
• Access Opening: Back
• Configuration: LB
• Cover Type: Class 30 Gray Iron Alloy
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Hub Size: 2 Inch
• Catalog Description: 2 INCH MOGUL CONDUIT OUTLET BODY, COVER AND GASKET, BACK OPENING, BODY MATERIAL GRAY IRON, FINISH ELECTRO GALVANIZED, COVER MATERIAL GRAY IRON WITH STAINLESS STEEL COVER SCREWS, GASKET MATERIAL NEOPRENE
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Aluminum Acrylic Painted Electrogalvanized Gray Iron Material; 12.58 Inch Length X 3 Inch Width X 4.16 Inch Height Size; Imc/Rigid Conduit Used on; 2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL, CSA Approval; Class 30 Gray Iron Alloy Cover Type; 90 Degree Hub Location; Mogul Form Type; Back Access Opening; Mogul Brand; Includes Cover, Gasket, Stainless Steel Screw; BL Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210088815
• SKU Name: t&b blb6tb

Resources

• Manufacturer Spec Sheet
