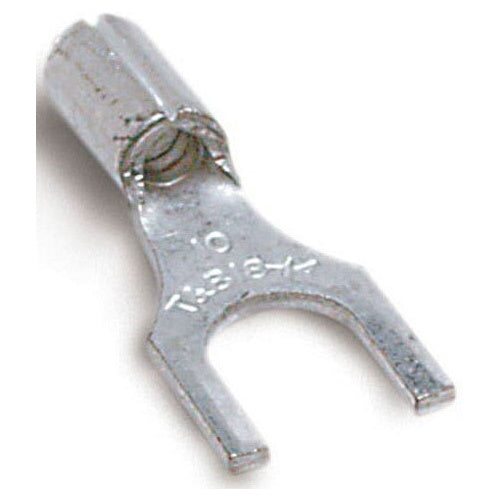

T&B C10-14F Non-Insulated Fork Terminal 12-10 Bolt 1/4"

Overview

T&B C10-14F Non-Insulated Fork Terminal 12-10 Bolt 1/4"

Product Specifications

• UPC: 78621080350
• Standard Package: 250
• Approval: UL, CSA
• Additional Information: Size 0.98 Inch L x 1/2 Inch W; Serrated Barrel; Material Electrolytic Tin Plated Copper
• Catalog Number: C10-14F
• Model: C
• Type: Standard
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Insulation Type: Non-Insulated
• Stud Size: 1/4 Inch
• Temperature Rating: 150 Deg C
• Catalog Description: NON-INSULATED FORK TERMINAL, LENGTH .98 INCHES, WIDTH .50 INCHES, BOLT HOLE 1/4 INCH, WIRE RANGE #12-#10 AWG, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 150 Deg C Temperature Rating; 250 Standard Package; 1/4 Inch Stud Size; Non-Insulated Insulation Type; Size 0.98 Inch L X 1/2 Inch W; Serrated Barrel; Material Electrolytic Tin Plated Copper; C Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Fork Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210803500
• SKU Name: t&b c1014f
