Product information
Overview

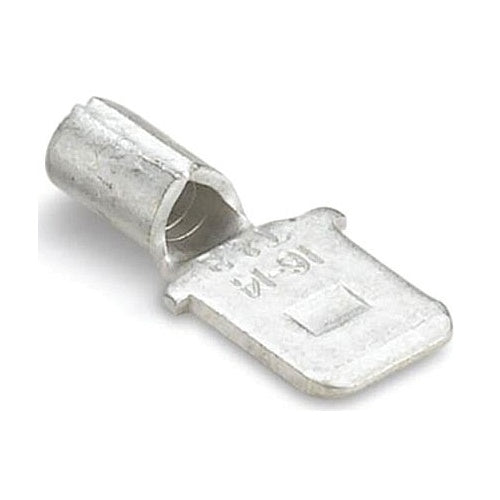

T&B C10-251T Non-Insulated Male-250 Tab 12-10 Len .68,
Product Specifications
- UPC: 78621087416
- Temperature Rating: 150 Deg C
- Standard Package: 50 per Pack
- Approval: UL, CSA
- Additional Information: Length 0.68 Inch; Voltage Rating 600 Volt; Material Electro Tin Plated Brass
- Catalog Number: C10-251T
- Model: 250
- Type: Tab Style, Barrel Entry
- Tab Size: 0.25 Inch x 0.032 Inch
- Minimum Conductor Size: 12 AWG
- Maximum Conductor Size: 10 AWG
- Color: Metallic
- Insulation Type: Non-Insulated
- Catalog Description: NON-INSULATED MALE TAB, LENGTH .68 INCHES, TAB SIZE .250X.032, WIRE RANGE #12-#10 AWG, COPPER, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Tab Style, Barrel Entry Type; Metallic Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 150 Deg C Temperature Rating; 50 Per Pack Standard Package; Non-Insulated Insulation Type; 0.25 Inch X 0.032 Inch Tab Size; Length 0.68 Inch; Voltage Rating 600 Volt; Material Electro Tin Plated Brass; 250 Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Male Disconnect
- Unspsc: 39121447
- UPC 12 Digit: 786210874166
- SKU Name: t&b c10251t
