Product information
Overview

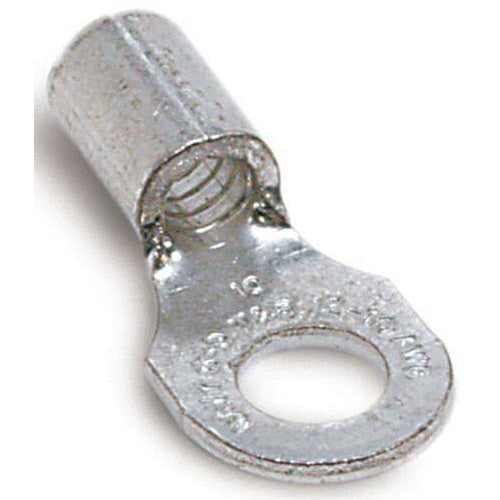

T&B C10-516 Non-Insulated Ring Terminal 12-10, 5/16, Met
Product Specifications
- UPC: 78621080355
- Additional Information: Size 0.98 Inch Length x 0.5 Inch Width; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
- Catalog Number: C10-516
- Minimum Conductor Size: 12 AWG
- Maximum Conductor Size: 10 AWG
- Insulation Type: Non-Insulated
- Stud Size: 5/16 Inch
- Temperature Rating: 150 Deg C
- Standard Package: 50 per Pack
- Approval: UL 486A/B, CSA 22.2
- Catalog Description: NON-INSULATED RING TERMINAL, LENGTH .98 INCHES, WIDTH .50 INCHES, BOLT HOLE 5/16 INCH, WIRE RANGE #12-#10 AWG, COPPER, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486A/B, CSA 22.2 Approval; 150 Deg C Temperature Rating; 50 Per Pack Standard Package; 5/16 Inch Stud Size; Non-Insulated Insulation Type; Size 0.98 Inch Length X 0.5 Inch Width; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210803555
- SKU Name: t&b c10516
