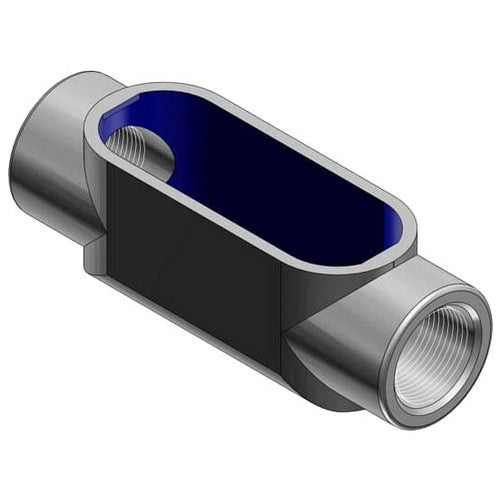

T&B C17 1/2" Bluekote Conduit Body Form 7

Overview

T&B C17 1/2" Bluekote Conduit Body Form 7

Product Specifications

• UPC: 78621092457
• Size: 5.45 Inch L x 1.45 Inch W x 1.4 Inch H
• Installation: Threaded
• Material: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Screw
• Form Type: Form 7
• Approval: UL E2969, CSA
• Used On: Rigid/IMC Conduit
• Catalog Number: C17
• Brand Name: BlueKote[R]
• Access Opening: Straight Side
• Configuration: C
• Cover Type: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw-On
• Hub Location: Straight
• Number Of Hubs: 2
• Hub Size: 1/2 Inch
• Catalog Description: BLUEKOTE THRU-FEED FORM 7, 1/2 INCH CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Screw Material; 5.45 Inch L X 1.45 Inch W X 1.4 Inch H Size; Rigid/Imc Conduit Used on; 1/2 Inch Hub Size; Threaded Installation; C Configuration; 2 Hub(S); UL E2969, CSA Approval; Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw-on Cover Type; Straight Hub Location; Form 7 Form Type; Straight Side Access Opening; BLUEKOTE[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210924571
• SKU Name: t&b c17

Resources

• Manufacturer Spec Sheet
