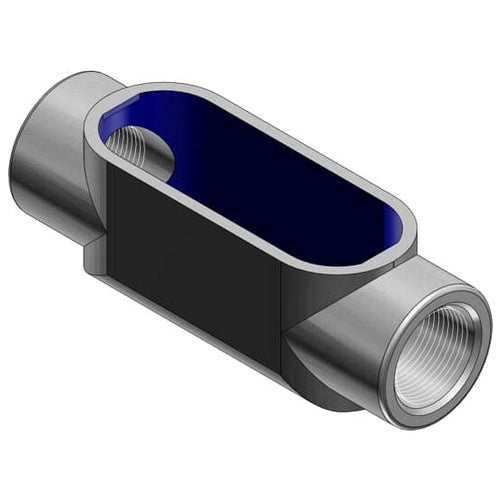

T&B C27 3/4" C-Type Conduit Body Form-7

Product Specifications

• UPC: 78621092458
• Size: 6.5 INCH L X 1.65 INCH W X 1.6 INCH H
• Installation: THREADED
• Material: SAND CAST ZINC PLATED, ALUMINUM ACRYLIC COATED GRAY IRON ALLOY BODY, NEOPRENE GASKET, STAINLESS STEEL SCREW
• Form Type: FORM 7
• Approval: UL E2969, CSA
• Used On: RIGID/IMC CONDUIT
• Catalog Number: C27
• Brand Name: BLUEKOTE
• Access Opening: STRAIGHT SIDE
• Configuration: C
• Cover Type: SAND CAST ZINC PLATED, ALUMINUM ACRYLIC COATED GRAY (IRON ALLOY), STAMPED ZINC PLATED, CLEAR CHROMATE COATED (STEEL), SCREW-ON
• Hub Location: STRAIGHT
• Number Of Hubs: 2
• Hub Size: 3/4 INCH
• Catalog Description: BLUEKOTE THRU-FEED FORM 7, 3/4 INCH CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Screw Material; 6.5 Inch L X 1.65 Inch W X 1.6 Inch H Size; Rigid/Imc Conduit Used on; 3/4 Inch Hub Size; Threaded Installation; C Configuration; 2 Hub(S); UL E2969, CSA Approval; Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw-on Cover Type; Straight Hub Location; Form 7 Form Type; Straight Side Access Opening; BLUEKOTE[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210924588
• SKU Name: t&b c27
