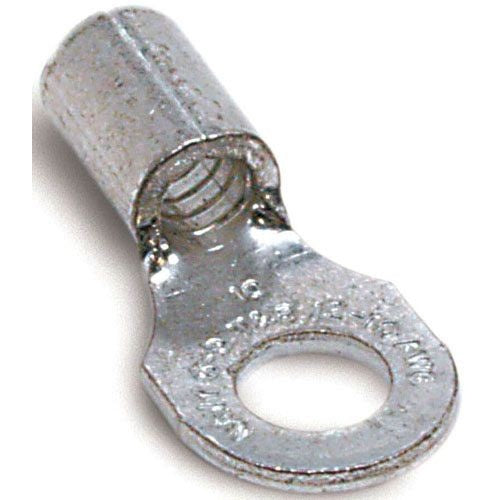

T&B C36 Non-Insulated Ring Terminal 12-10 No10 Metal

Overview

High-strength construction for enhanced durability, Corrosion-resistant finish for longevity, Easy installation with user-friendly design, Compatible with a wide range of industrial applications

Product Specifications

• UPC: 78621081068
• Temperature Rating: 150 Deg C
• Standard Package: 10000 per Outer Pack
• Approval: UL 486A, CSA C22.2
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 0.82 Inch Length x 0.31 Inch Width x 0.04 Inch Thickness; Material Copper; Finish Electro Tin Plated
• Catalog Number: C36
• Brand Name: Sta-Kon
• Type: Standard
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Metallic
• Insulation Type: Non-Insulated
• Stud Size: #10
• Catalog Description: NON-INSULATED RING TERMINAL, LENGTH .82 INCHES, WIDTH .31 INCHES, BOLT HOLE #10, WIRE RANGE #12-#10 AWG, COPPER, TIN PLATED, 500 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Metallic Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486A, CSA C22.2 Approval; 150 Deg C Temperature Rating; 10000 Per Outer Pack Standard Package; #10 Stud Size; Non-Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 0.82 Inch Length X 0.31 Inch Width X 0.04 Inch Thickness; Material Copper; Finish Electro Tin Plated
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210810683
• SKU Name: T&B C36
