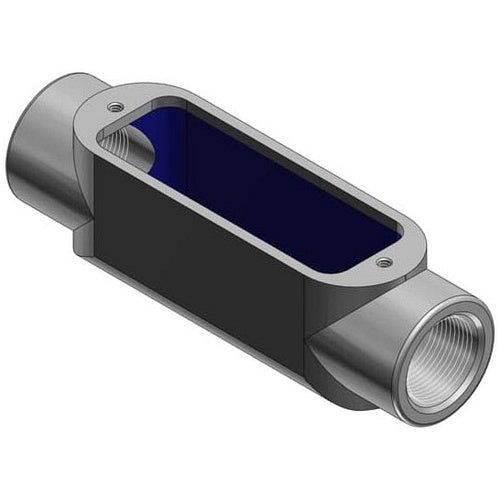

T&B C38 1" Conduit Body Iron C-Type Form-8

Overview

High durability for extended operational life, Easy installation and maintenance, Compatible with a wide range of industrial applications

Product Specifications

• UPC: 78621016536
• Size: 7-5/16 Inch L x 1-3/4 Inch W x 1-15/16 Inch H
• Installation: Threaded
• Material: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Screw
• Form Type: Form 8
• Approval: UL E2969, CSA
• Used On: Rigid/IMC Conduit
• Catalog Number: C38
• Brand Name: BlueKote[R]
• Access Opening: Straight Side
• Configuration: C
• Cover Type: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Screw
• Hub Location: Straight
• Number Of Hubs: 2
• Hub Size: 1 Inch
• Catalog Description: BLUEKOTE THRU-FEED FORM 8 1 INCH CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Screw Material; 7-5/16 Inch L X 1-3/4 Inch W X 1-15/16 Inch H Size; Rigid/Imc Conduit Used on; 1 Inch Hub Size; Threaded Installation; C Configuration; 2 Hub(S); UL E2969, CSA Approval; Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Screw Cover Type; Straight Hub Location; Form 8 Form Type; Straight Side Access Opening; BLUEKOTE[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210165363
• SKU Name: T&B C38
