T&B C57CG-TB 1-1/2" C-Body Cover & Gasket C-Type Form-7

Overview

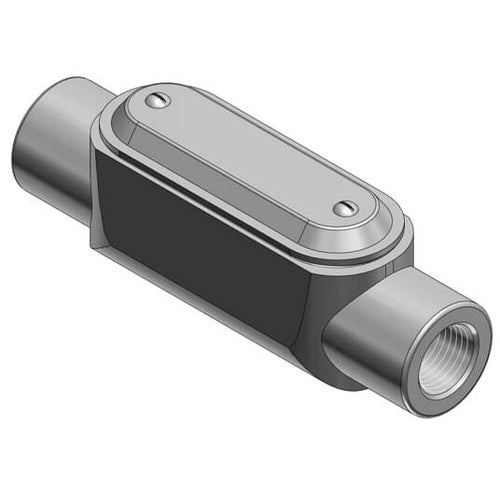

T&B C57CG-TB 1-1/2" C-Body Cover & Gasket C-Type Form-7

Product Specifications

• UPC: 78621091683
• Installation: Threaded
• Material: PTFE Based BlueKote Coated Internal, Class 30 Zinc Plated with Epoxy Powder Coated Malleable Iron
• Form Type: Form 7
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Includes Cover, Neoprene Gasket, Stainless Steel Screw
• Catalog Number: C57CG-TB
• Brand Name: BlueKote[R]
• Access Opening: Straight Side
• Configuration: C
• Cover Type: Zinc Plated Stamped Steel with Clear Chromate Coating
• Hub Location: Straight
• Number Of Hubs: 2
• Hub Size: 1-1/2 Inch
• Catalog Description: 1-1/2 INCH BLUEKOTE THRU-FEED FORM 7 PRE-ASSEMBLED CONDUIT BODY, COVER AND GASKET, BODY MATERIAL GRAY IRON/ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING, COVER MATERIAL AND FINISH STAMPED STEEL/ZINC PLATING
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: PTFE Based Bluekote Coated Internal, Class 30 Zinc Plated With Epoxy Powder Coated Malleable Iron Material; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; C Configuration; 2 Hub(S); UL, CSA Approval; Zinc Plated Stamped Steel With Clear Chromate Coating Cover Type; Straight Hub Location; Form 7 Form Type; Straight Side Access Opening; BLUEKOTE[R] Brand; Includes Cover, Neoprene Gasket, Stainless Steel Screw
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210916835
• SKU Name: t&b c57cgtb

Resources

• Manufacturer Spec Sheet
