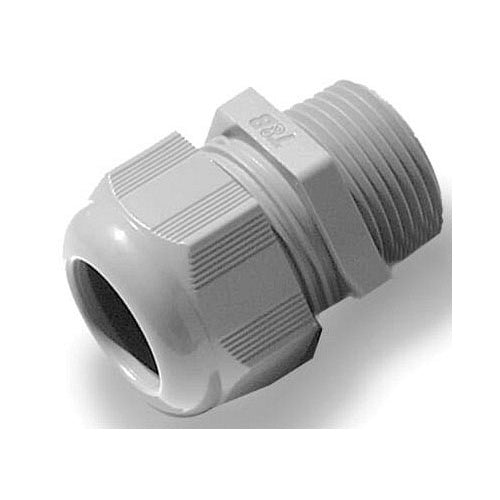

T&B CC-NPT-34-G 3/4" Cable Gland

Overview

T&B CC-NPT-34-G 3/4" Cable Gland

Product Specifications

• UPC: 78621007853
• Operating Temperature: -30 to 80 Deg C
• Standard Package: 100 per Pack
• Approval: UL, CSA
• Additional Information: Thread Length 0.59 Inch; Application Connection and Strain Relief in Cramped Space; Applicable Standard VDE
• Catalog Number: CC-NPT-34-G
• Type: Straight
• Thread Size: 3/4 Inch Threaded
• Constructional Feature: Corrosion/Chemical/Impact Resistance
• Cable Outer Diameter: 0.512 to 0.709 Inch
• Material: Nylon 6
• Color: Gray
• Enclosure: NEMA 4, IP68
• Catalog Description: CABLE GLAND WITH NPT THREADS, NPT THREAD SIZE 3/4 INCH, CORD RANGE 0.512 INCH/13MM TO 0.709 INCH/18MM, THREAD LENGTH 0.590 INCH/15MM, IP68 RATING, HALOGEN FREE, NYLON, GRAY
• Category: Cable & Cord Grips
• Full Technical Description: Straight Type; Nylon 6 Material; Gray Color; UL, CSA Approval; NEMA 4, IP68 Enclosure; 100 Per Pack Standard Package; 3/4 Inch Threaded Thread Size; -30 to 80 Deg C Operating Temperature; Corrosion/Chemical/Impact Resistance; 0.512 to 0.709 Inch Cable Outer Diameter; Thread Length 0.59 Inch; Application Connection and Strain Relief in Cramped Space; Applicable Standard VDE
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Cable Gland
• Unspsc: 39121431
• UPC 12 Digit: 786210078533
• SKU Name: t&b ccnpt34g
