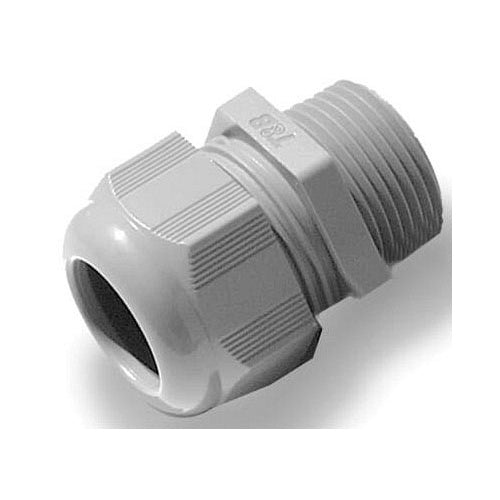

T&B CC-NPT-38-G 3/8" Cable Gland

Overview

T&B CC-NPT-38-G 3/8" Cable Gland

Product Specifications

• UPC: 78621007817
• Color: Gray
• Enclosure: NEMA 4, IP68
• Operating Temperature: -30 to 80 Deg C
• Standard Package: 250
• Approval: UL, CSA
• Additional Information: Applicable Standard VDE
• Catalog Number: CC-NPT-38-G
• Brand Name: T&B
• Model: CC
• Type: Straight
• Thread Size: 3/8 Inch Threaded
• Constructional Feature: Corrosion/Chemical/Impact Resistance
• Cable Outer Diameter: 0.197 to 0.394 Inch
• Material: Nylon 6
• Catalog Description: CABLE GLAND WITH NPT THREADS, NPT THREAD SIZE 3/8 INCH, CORD RANGE 0.197 INCH/5MM TO 0.394/ INCH10MM, THREAD LENGTH 0.590 INCH/15MM, IP68 RATING, HALOGEN FREE, NYLON, GRAY
• Category: Cable & Cord Grips
• Full Technical Description: Straight Type; Nylon 6 Material; Gray Color; UL, CSA Approval; NEMA 4, IP68 Enclosure; 250 Standard Package; 3/8 Inch Threaded Thread Size; -30 to 80 Deg C Operating Temperature; Corrosion/Chemical/Impact Resistance; 0.197 to 0.394 Inch Cable Outer Diameter; Applicable Standard VDE; CC Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Cable Gland
• Unspsc: 39121431
• UPC 12 Digit: 786210078175
• SKU Name: t&b ccnpt38g
