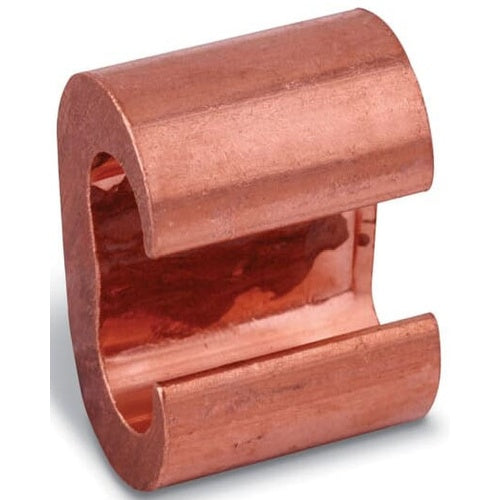

T&B CTP250250 C-Tap, 3/0-250 Main And Tap

Overview

T&B CTP250250 C-Tap, 3/0-250 Main And Tap

Product Specifications

• UPC: 78621033110
• Maximum Tap Conductor Size: 250 KCMIL
• Body Material: High Conductivity Copper
• Approval: UL, CSA
• Additional Information: Overall Dimension 7/8 Inch Width x 2-1/16 Inch Height; Number of Crimps 1; Applicable Standard IEEE 837
• Catalog Number: CTP250250
• Brand Name: E-Z-Ground[R]
• Shape: C
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 3/0 AWG Stranded
• Maximum Run Conductor Size: 250 KCMIL
• Minimum Tap Conductor Size: 3/0 AWG Stranded
• Catalog Description: E-Z-GROUND C-TAPS COPPER COMPRESSION CONNECTOR FOR CABLE RANGE 3/0 STR. - 250 KCMIL, TAP 3/0 STR. - 250 KCMIL
• Category: Grounding & Bonding Equipment
• Full Technical Description: 3/0 AWG Stranded min. Run Conductor Size; 250 kcmil Max. Run Conductor Size; 3/0 AWG Stranded min. Tap Conductor Size; 250 kcmil Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL, CSA Approval; High Conductivity Copper Body Material; 1 Tap(S); EZGROUND[TM] Brand; Overall Dimension 7/8 Inch Width X 2-1/16 Inch Height; Number of Crimps 1; Applicable Standard IEEE 837
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Tap
• Unspsc: 39121428
• UPC 12 Digit: 786210331102
• SKU Name: t&b ctp250250
