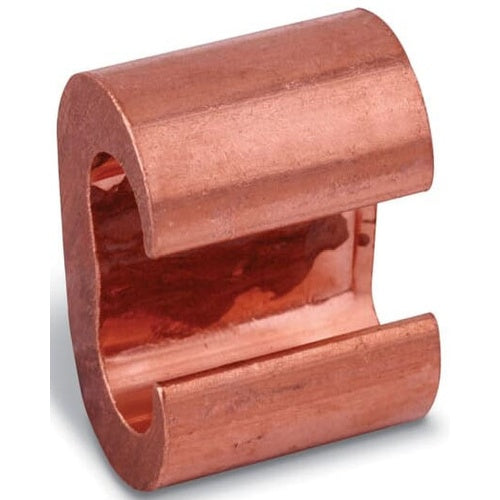

T&B CTP50020 C-Tap, 300-500 Main, 6-2/0 Tap

Overview

T&B CTP50020 C-Tap, 300-500 Main, 6-2/0 Tap

Product Specifications

• UPC: 78621033113
• Maximum Tap Conductor Size: 2/0 AWG
• Body Material: High Conductivity Copper
• Approval: UL, CSA
• Additional Information: Applicable Standard IEEE 837
• Catalog Number: CTP50020
• Model: CTP
• Shape: C
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 300 KCMIL
• Maximum Run Conductor Size: 500 KCMIL
• Minimum Tap Conductor Size: 6 AWG Solid
• Catalog Description: E-Z-GROUND C-TAPS COPPER COMPRESSION CONNECTOR FOR CABLE RANGE 300 - 500 KCMIL, TAP #6 SOL.- 2/0 AWG
• Category: Grounding & Bonding Equipment
• Full Technical Description: 300 kcmil min. Run Conductor Size; 500 kcmil Max. Run Conductor Size; 6 AWG Solid min. Tap Conductor Size; 2/0 AWG Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL, CSA Approval; High Conductivity Copper Body Material; 1 Tap(S); EZGROUND[TM] Brand; Applicable Standard IEEE 837; CTP Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Tap
• Unspsc: 39121428
• UPC 12 Digit: 786210331133
• SKU Name: t&b ctp50020
