Product information
Overview

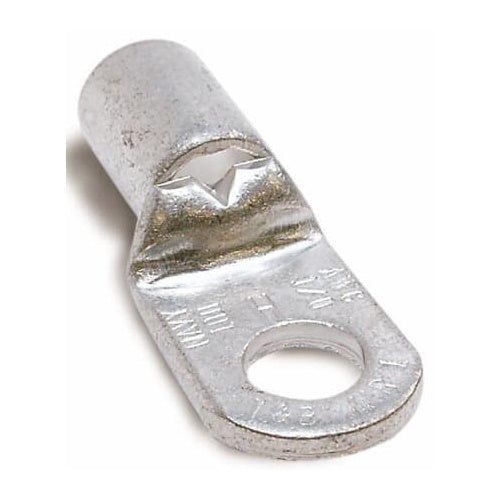

T&B D10161 Non-Insulated - Tub Ring Terminal 8, No8, Met
Product Specifications
- UPC: 78621082954
- Temperature Rating: 150 Deg C
- Standard Package: 200
- Approval: UL 486-A, CSA 22.2
- Additional Information: Dimension 1.15 Inch L x 0.41 Inch W x 0.04 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
- Catalog Number: D10161
- Model: D10
- Type: Standard
- Minimum Conductor Size: 9 AWG
- Maximum Conductor Size: 7 AWG
- Color: Metallic
- Insulation Type: Non-Insulated
- Stud Size: #8
- Catalog Description: NON-INSULATED TUBULAR RING TERMINAL, LENGTH 1.15 INCHES, WIDTH .41 INCHES, BOLT HOLE #8, WIRE RANGE 8/8AN, COPPER, TIN PLATED
- Category: Large Terminals & Connectors
- Full Technical Description: Standard Type; Metallic Color; 9 AWG min. Conductor Size; 7 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 150 Deg C Temperature Rating; 200 Standard Package; #8 Stud Size; Non-Insulated Insulation Type; Dimension 1.15 Inch L X 0.41 Inch W X 0.04 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; D10 Model
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210829548
- SKU Name: t&b d10161
