Product information
Overview

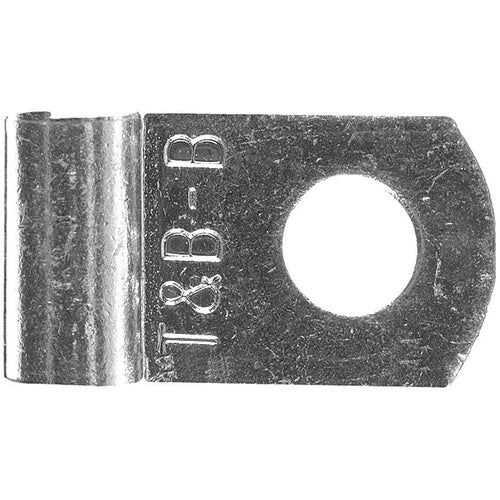

T&B D226 Non-Insulated Flag Terminal 9 8 7 No10
Product Specifications
- UPC: 78621081164
- Standard Package: 1000
- Approval: UL 486-A, CSA 22.2
- Additional Information: Dimension 0.88 Inch L x 1/2 Inch W x 0.06 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
- Catalog Number: D226
- Type: Flag, Standard
- Minimum Conductor Size: 9 AWG
- Maximum Conductor Size: 7 AWG
- Color: Metallic
- Insulation Type: Non-Insulated
- Stud Size: #10
- Temperature Rating: 150 Deg C
- Catalog Description: NON-INSULATED FLAG TERMINAL, LENGTH .90 INCHES, WIDTH .50 INCHES, BOLT HOLE #10, WIRE RANGE #8 AWG, COPPER, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Flag, Standard Type; Metallic Color; 9 AWG min. Conductor Size; 7 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 150 Deg C Temperature Rating; 1000 Standard Package; #10 Stud Size; Non-Insulated Insulation Type; Dimension 0.88 Inch L X 1/2 Inch W X 0.06 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210811642
- SKU Name: t&b d226
