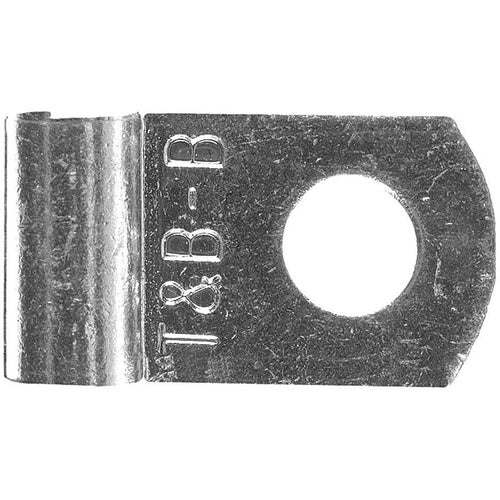

T&B D271 Non-Insulated Flag Terminal, 9, 8, 7, 1/4, Me

Overview

T&B D271 Non-Insulated Flag Terminal, 9, 8, 7, 1/4, Me

Product Specifications

• UPC: 78621081166
• Standard Package: 1000
• Approval: UL 486-A, CSA 22.2
• Additional Information: DIMENSION 0.92 INCH LENGTH X 1/2 INCH WIDTH X 0.06 INCH THICK; 90 DEG FLAG; FINISH ELECTROPLATED TIN
• Catalog Number: D271
• Brand Name: Sta-Kon.
• Model: D
• Type: STANDARD
• Minimum Conductor Size: 9 AWG
• Maximum Conductor Size: 7 AWG
• Insulation Type: NON INSULATED
• Stud Size: 1/4 INCH
• Catalog Description: NON-INSULATED FLAG TERMINAL, LENGTH .92 INCHES, WIDTH .50 INCHES, BOLT HOLE 1/4 INCH, WIRE RANGE #8 AWG, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; 9 AWG min. Conductor Size; 7 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 1000 Standard Package; 1/4 Inch Stud Size; Non Insulated Insulation Type; Sta-Kon. Brand; Dimension 0.92 Inch Length X 1/2 Inch Width X 0.06 Inch Thick; 90 Deg Flag; Finish Electroplated Tin; D Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210811666
• SKU Name: t&b d271
