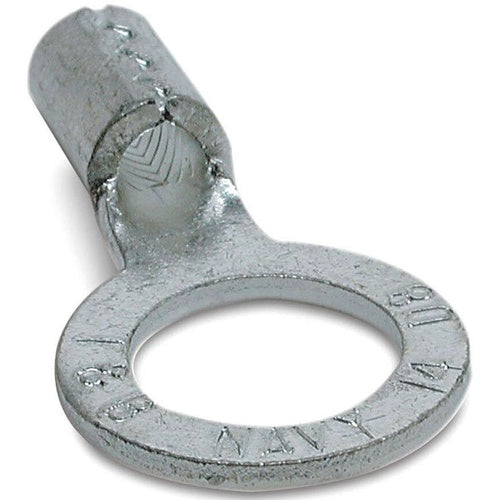

T&B D75 Non-Insulated Brazed Seam Ring Terminal No8 Awg 1/2" Bolt

Overview

T&B D75 Non-Insulated Brazed Seam Ring Terminal No8 Awg 1/2" Bolt

Product Specifications

• UPC: 78621081161
• Catalog Number: D75
• Type: Large Brazed Seam
• Maximum Conductor Size: 8 AWG
• Insulation Type: Non-Insulated
• Stud Size: 1/2 Inch
• Standard Package: 2000 per Outer Pack
• Approval: UL, CSA
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.49 Inch Length x 0.82 Inch Width; Material Copper; Finish Electro Tin Plated
• Catalog Description: NON-INSULATED LARGE BRAZED SEAM RING TERMINAL, LENGTH 1.49 INCHES, WIDTH .82 INCHES, BOLT HOLE 1/2 INCH, WIRE RANGE #8 AWG, COPPER, TIN PLATED, 200 PACK
• Category: Large Terminals & Connectors
• Full Technical Description: Large Brazed Seam Type; 8 AWG Max. Conductor Size; UL, CSA Approval; 2000 Per Outer Pack Standard Package; 1/2 Inch Stud Size; Non-Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.49 Inch Length X 0.82 Inch Width; Material Copper; Finish Electro Tin Plated
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210811611
• SKU Name: t&b d75
